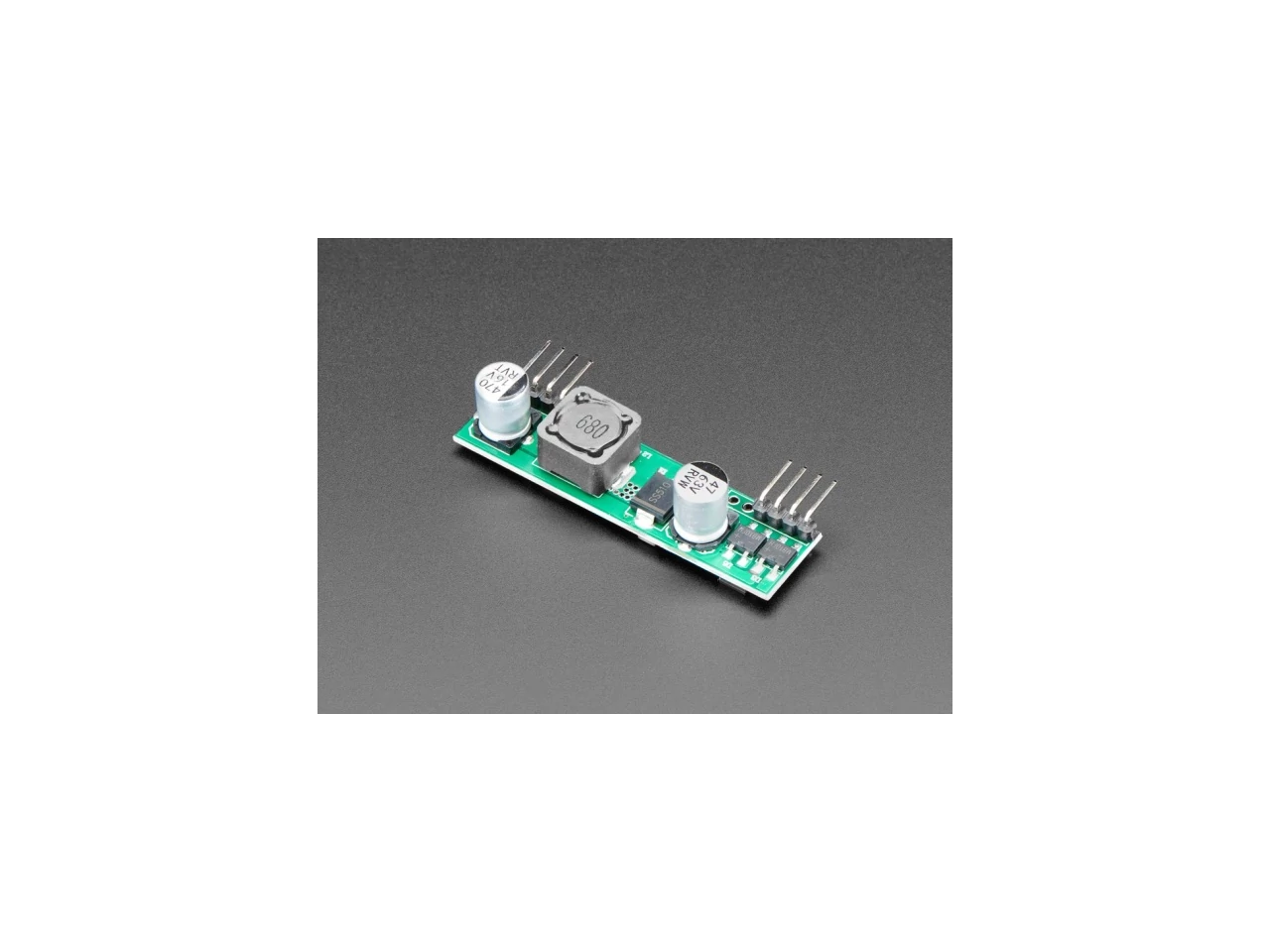

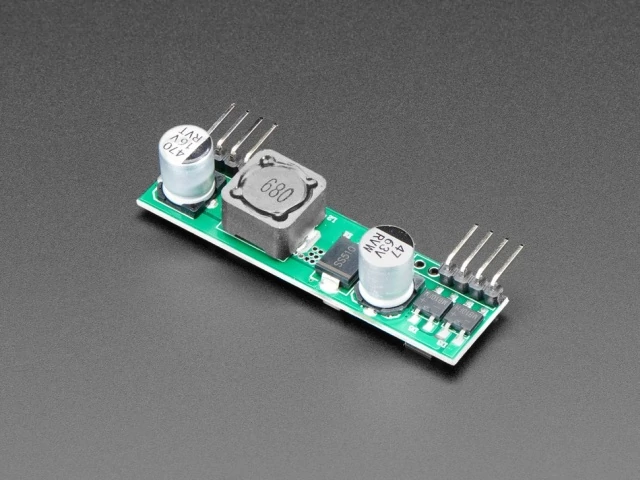

Power over Ethernet (PoE) can make your project wiring a breeze - instead of needing a wire for power and data, you can use one Ethernet cable for both! All you need is this handy PoE module, and access to the center-taps on your Ethernet-capable board. Attach the four input wires, and get regulated 5V 1.5A on the other side. Amazing!

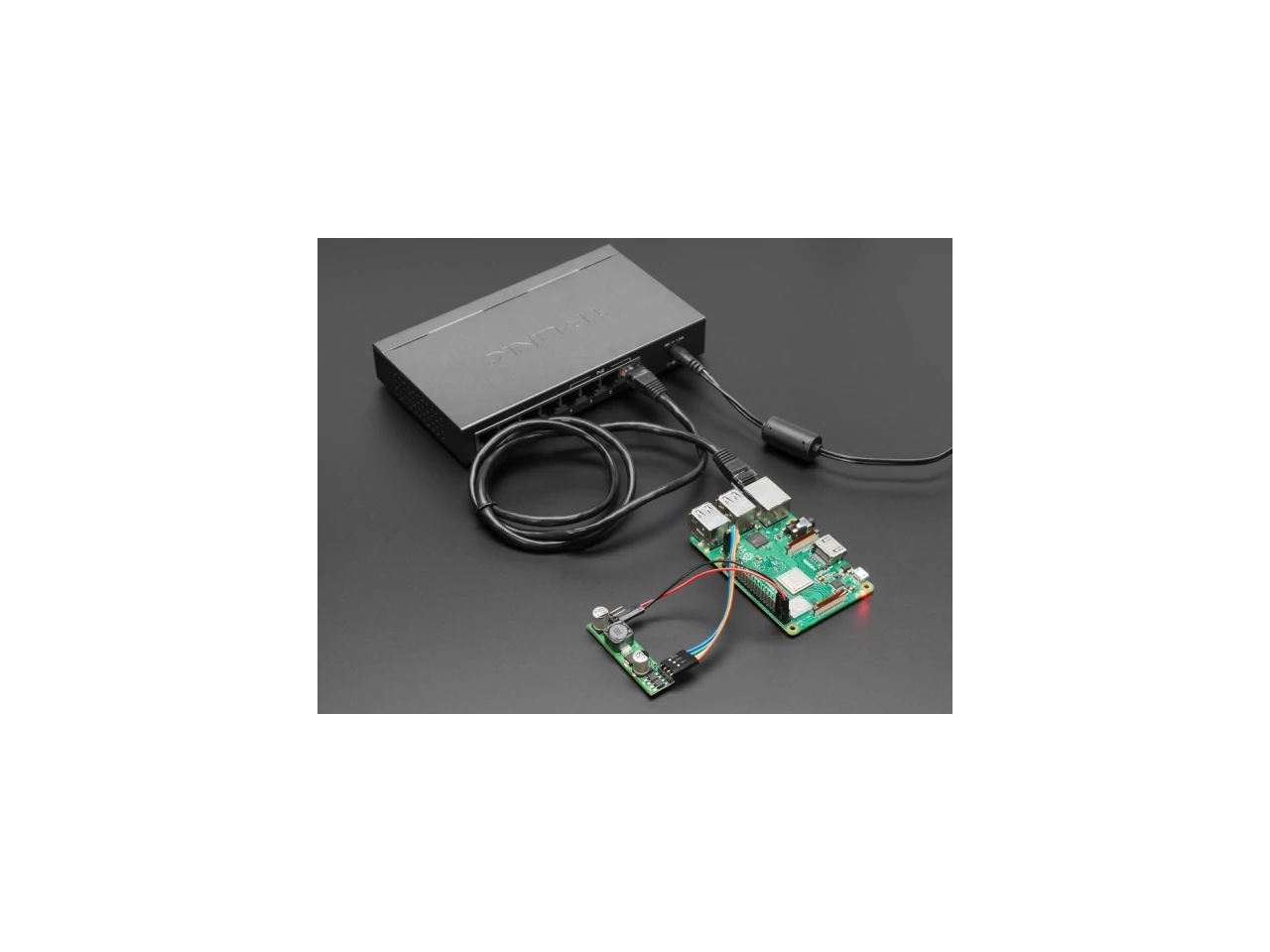

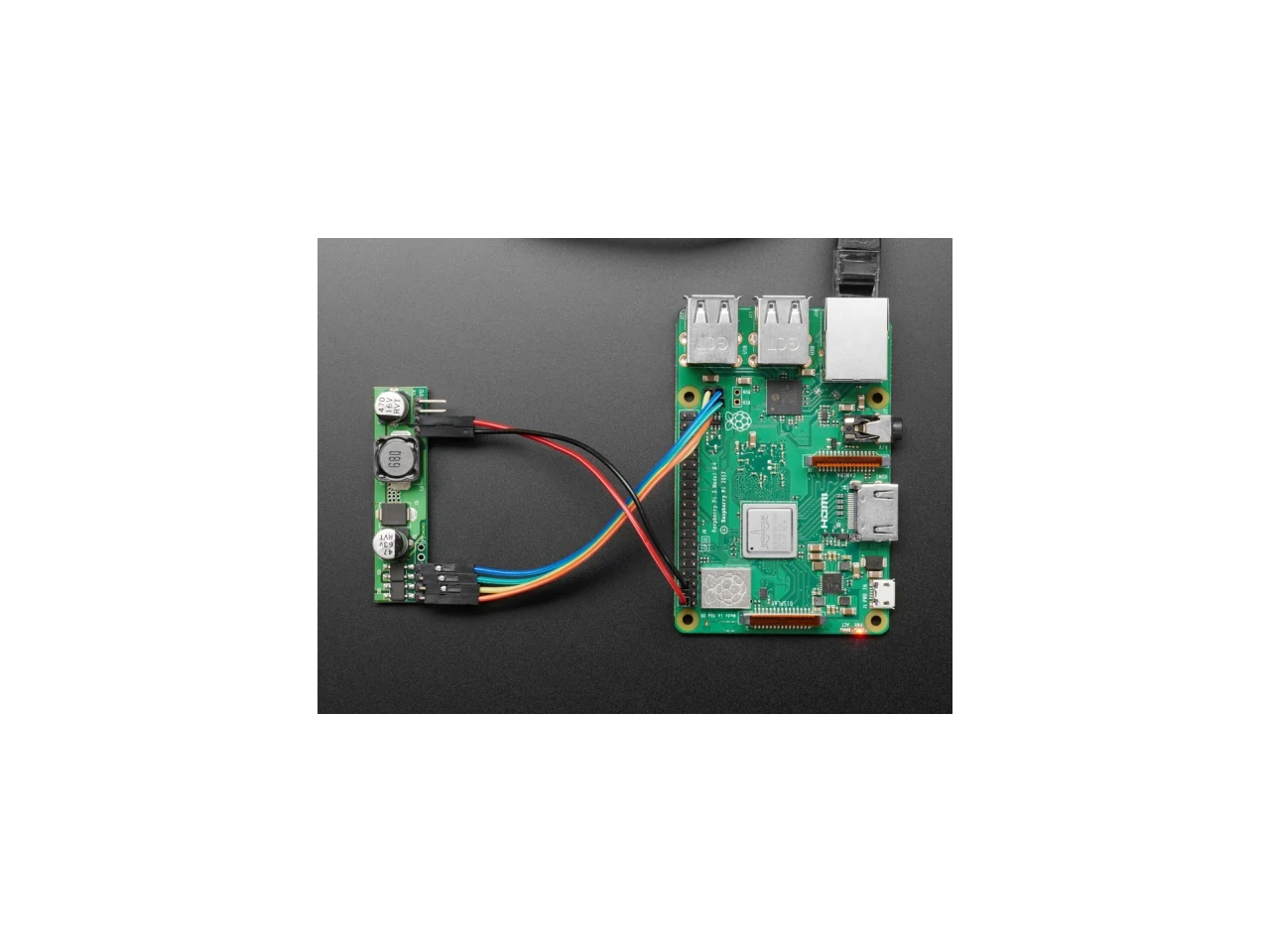

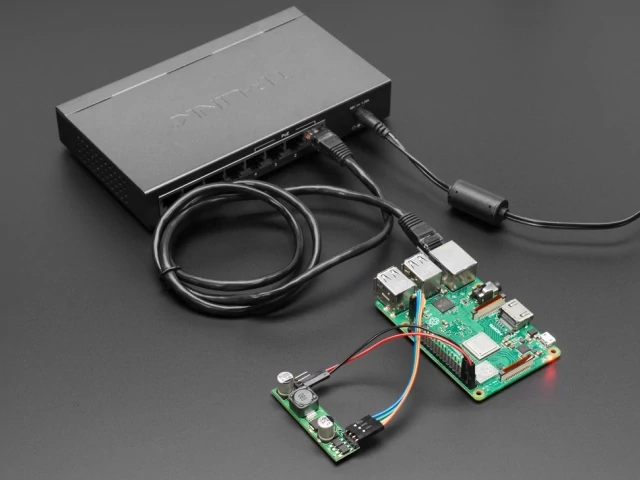

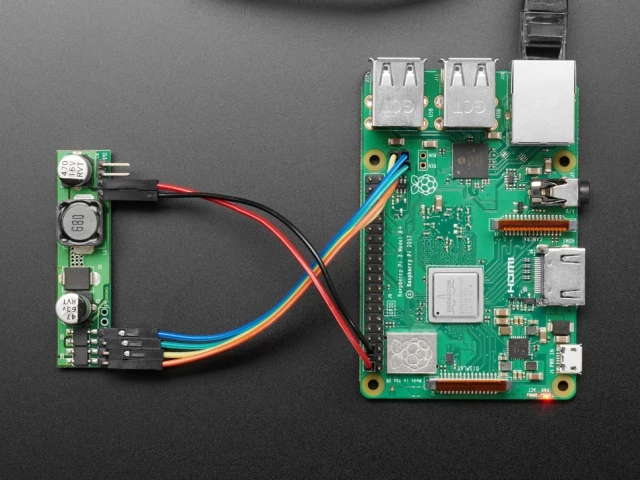

This module works well with the Raspberry Pi 3 Model B+, which has the 4 wires on a header. As you can see in our photos, you just need some female-female jumper wires to get the Ethernet wires to the module, and then two wires to bring the 5V back to the header. Note that even though a 2.5A power supply is recommended for a Pi 3B+, that's only required if you attach a bunch of accessories (such as a 7" display!) 1.5A will cover a wide range of usages, as the current draw is around 0.7A max without extras.
If you don't have access to those pins, but can power your board or computer with a micro USB cable, check out our 5V microUSB PoE Splitter. It's bigger and more expensive but really easy to use Great for older Raspberry Pi's (not the 3 B+), Feathers, etc)

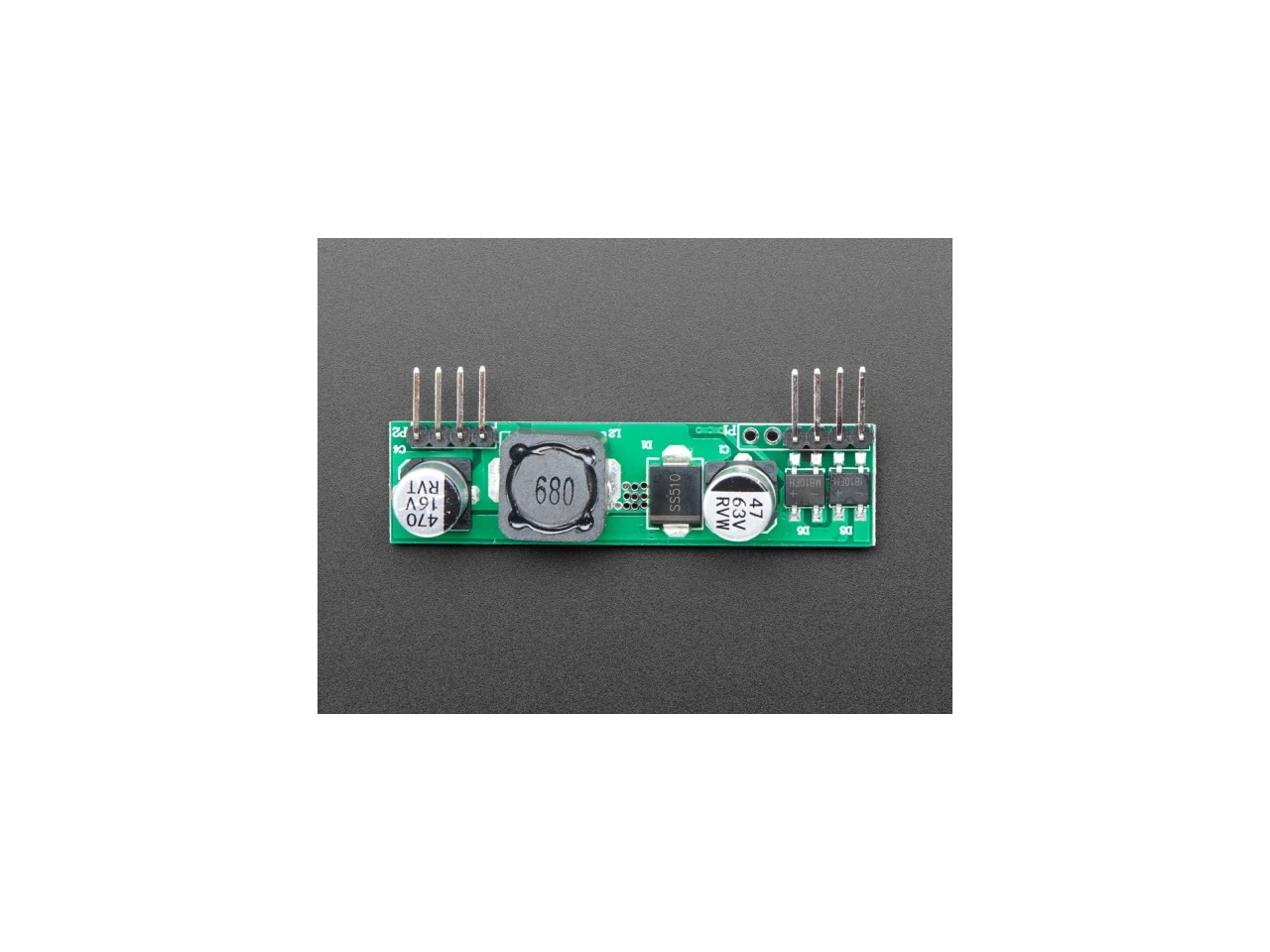

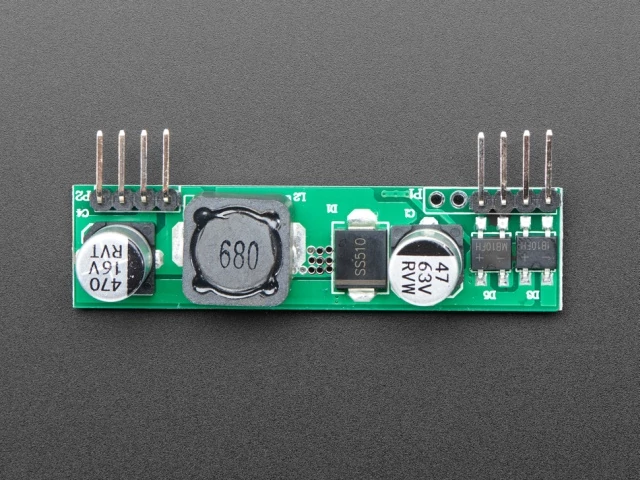

- Connect pins 1 and 2 to Ethernet wires 4 and 5
- Connect pins 3 and 4 to Ethernet wires 7 and 8
- Pin labeled (-) is ground output
- Pin labeled (+) is 5V out
Product Dimensions: 56.4mm x 20.3mm x 13.2mm / 2.2" x 0.8" x 0.5"
Product Weight: 9.0g / 0.3oz
