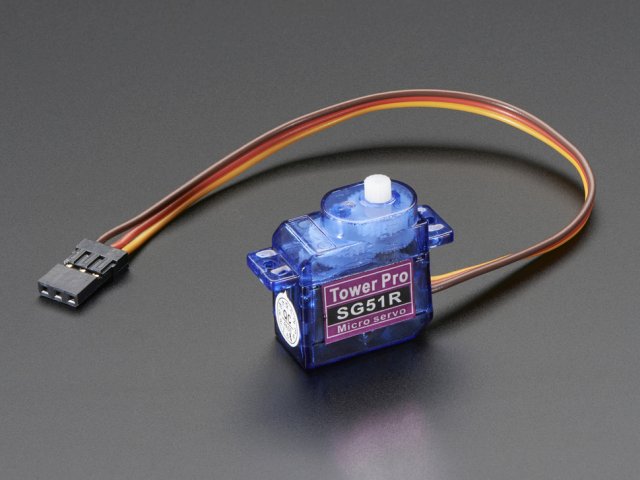

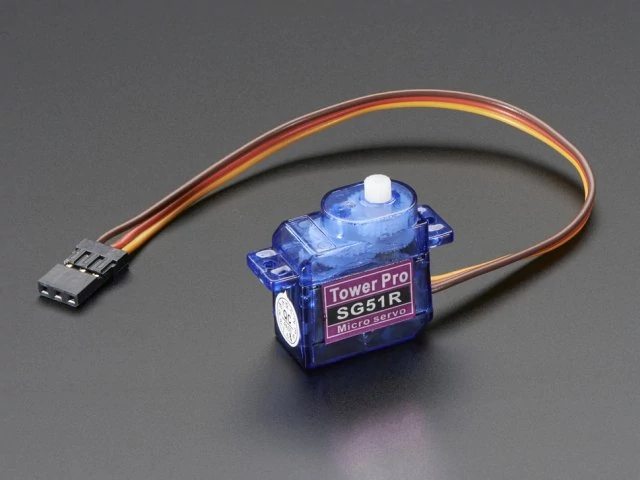

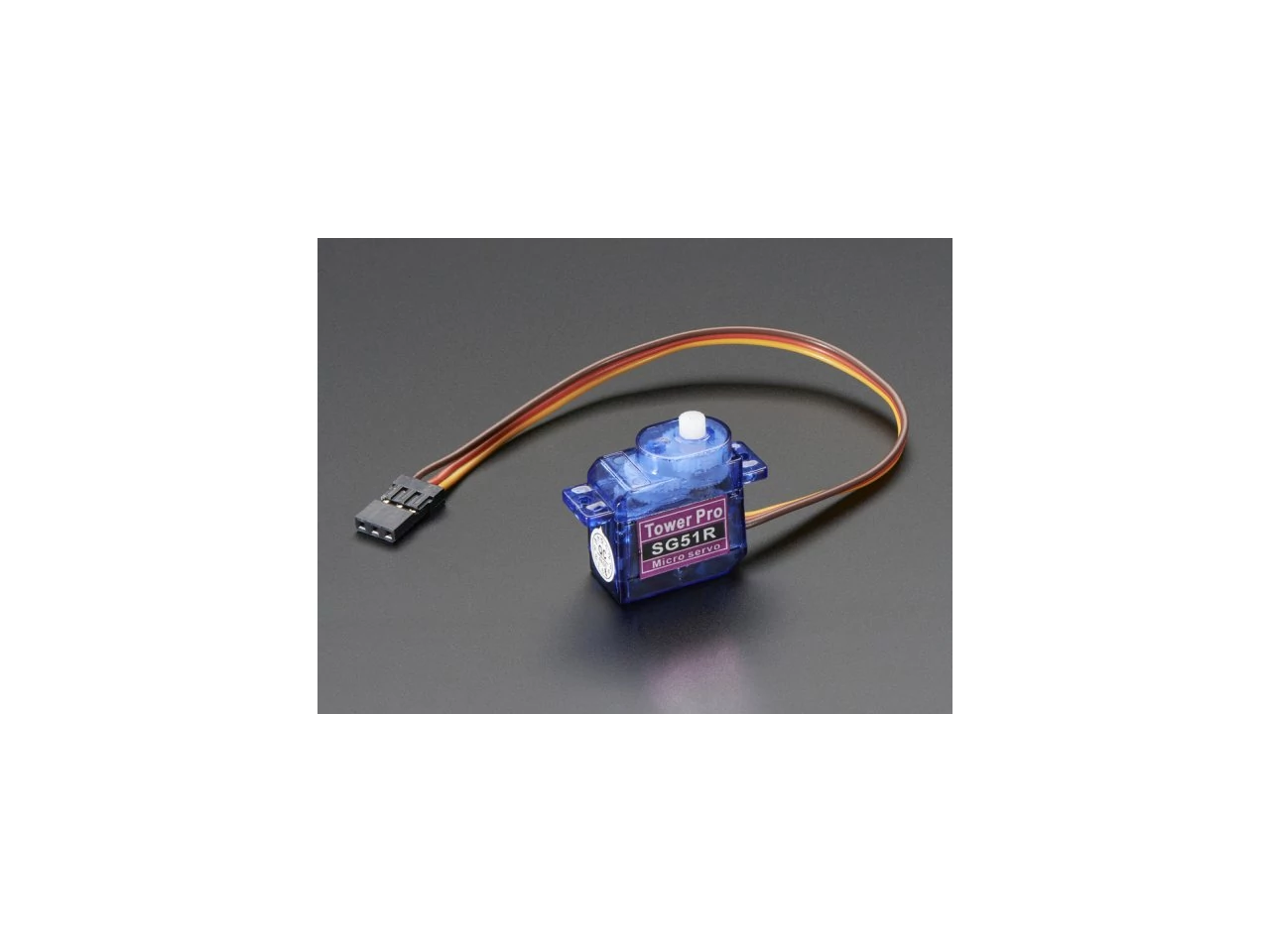

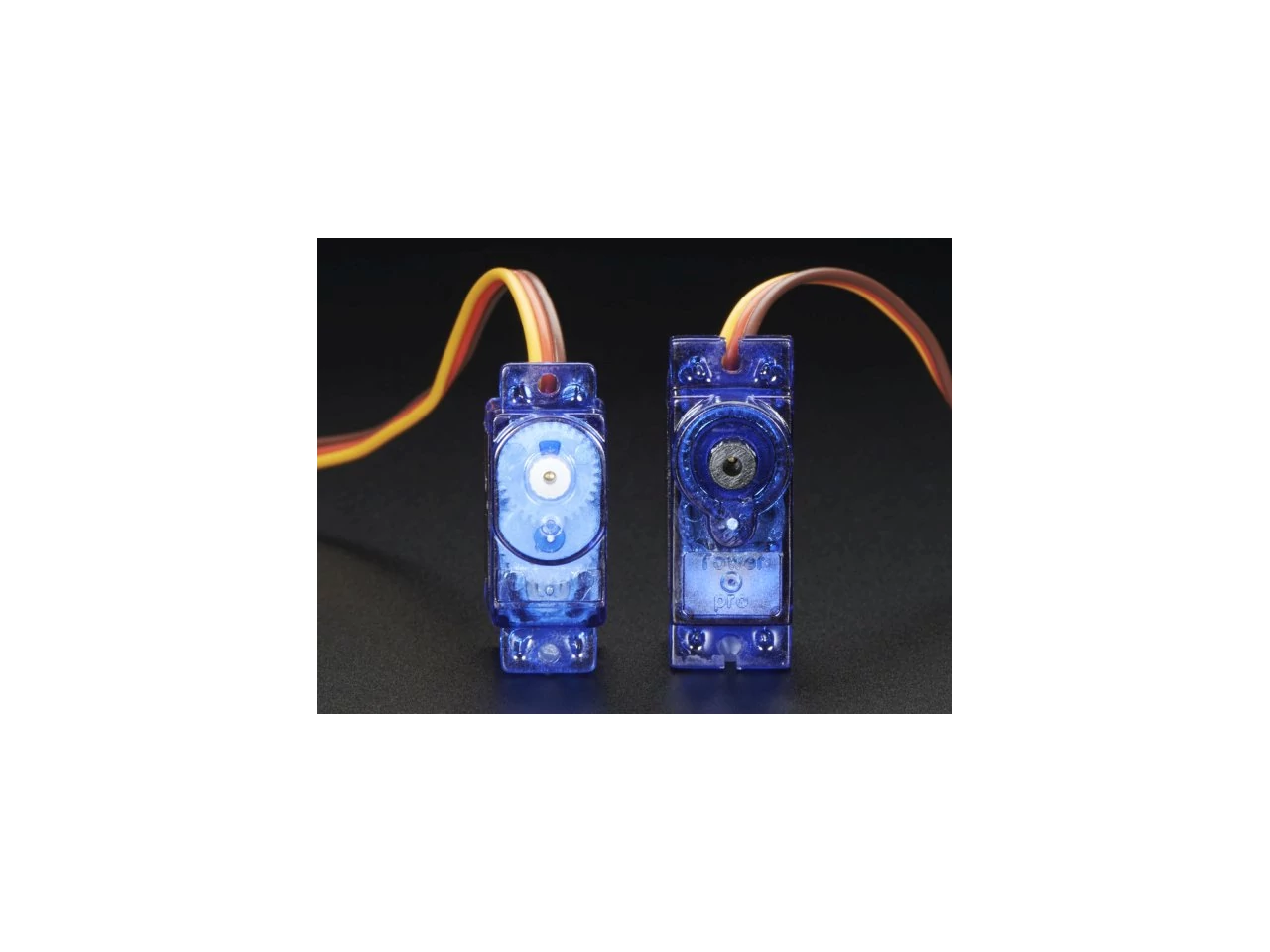

A2201 Sub-micro Servo - SG51R

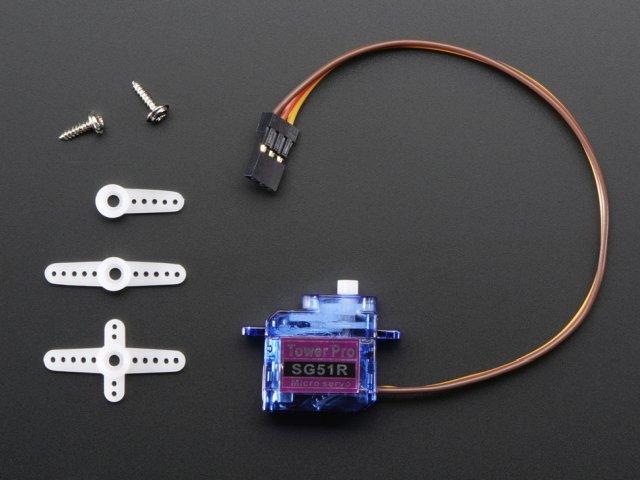

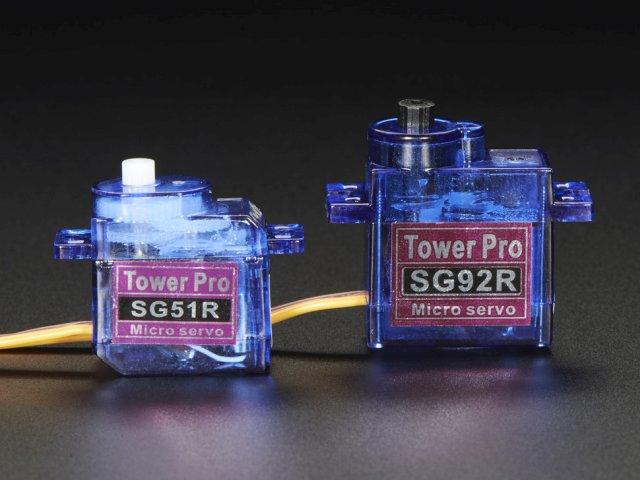

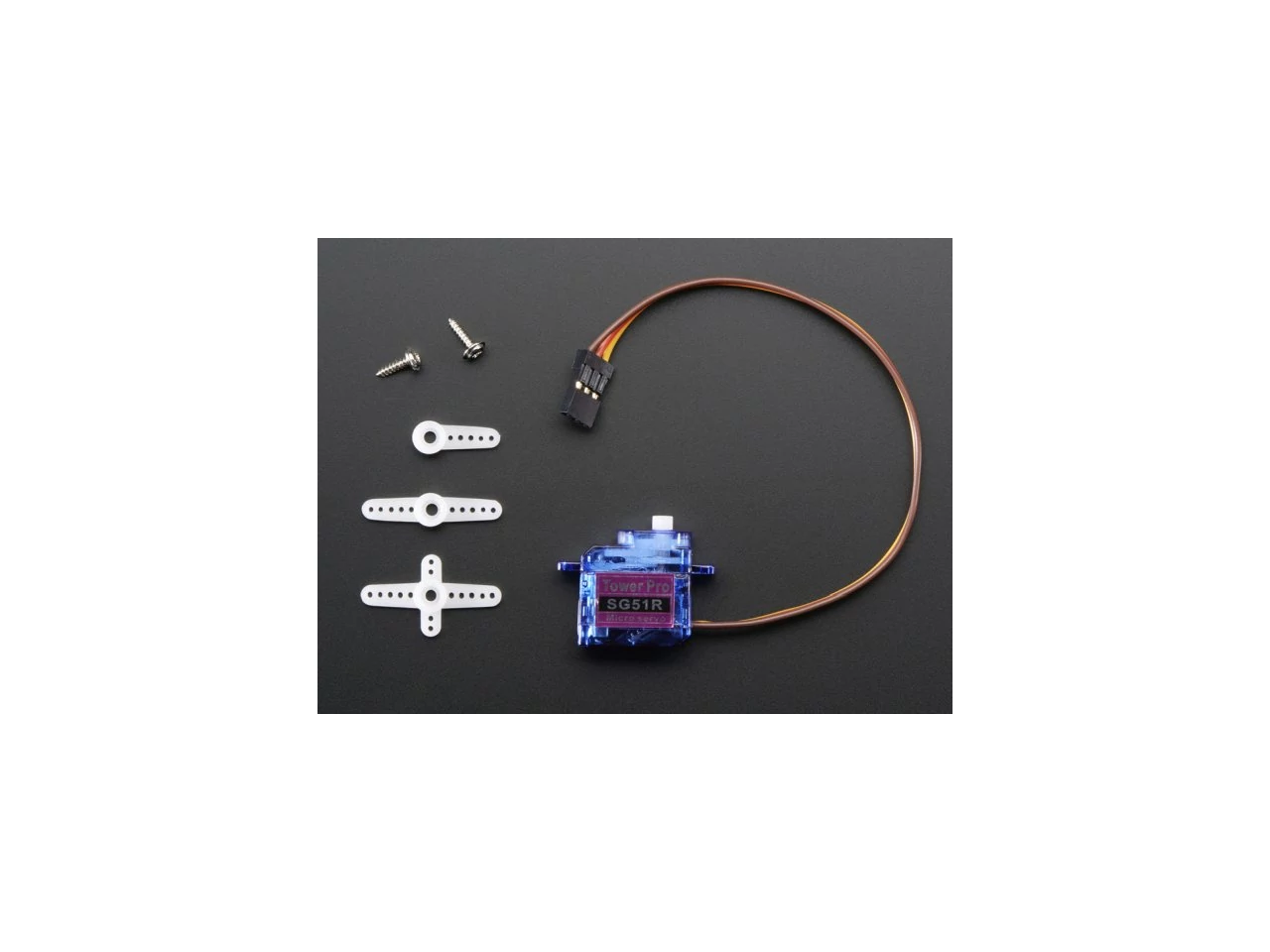

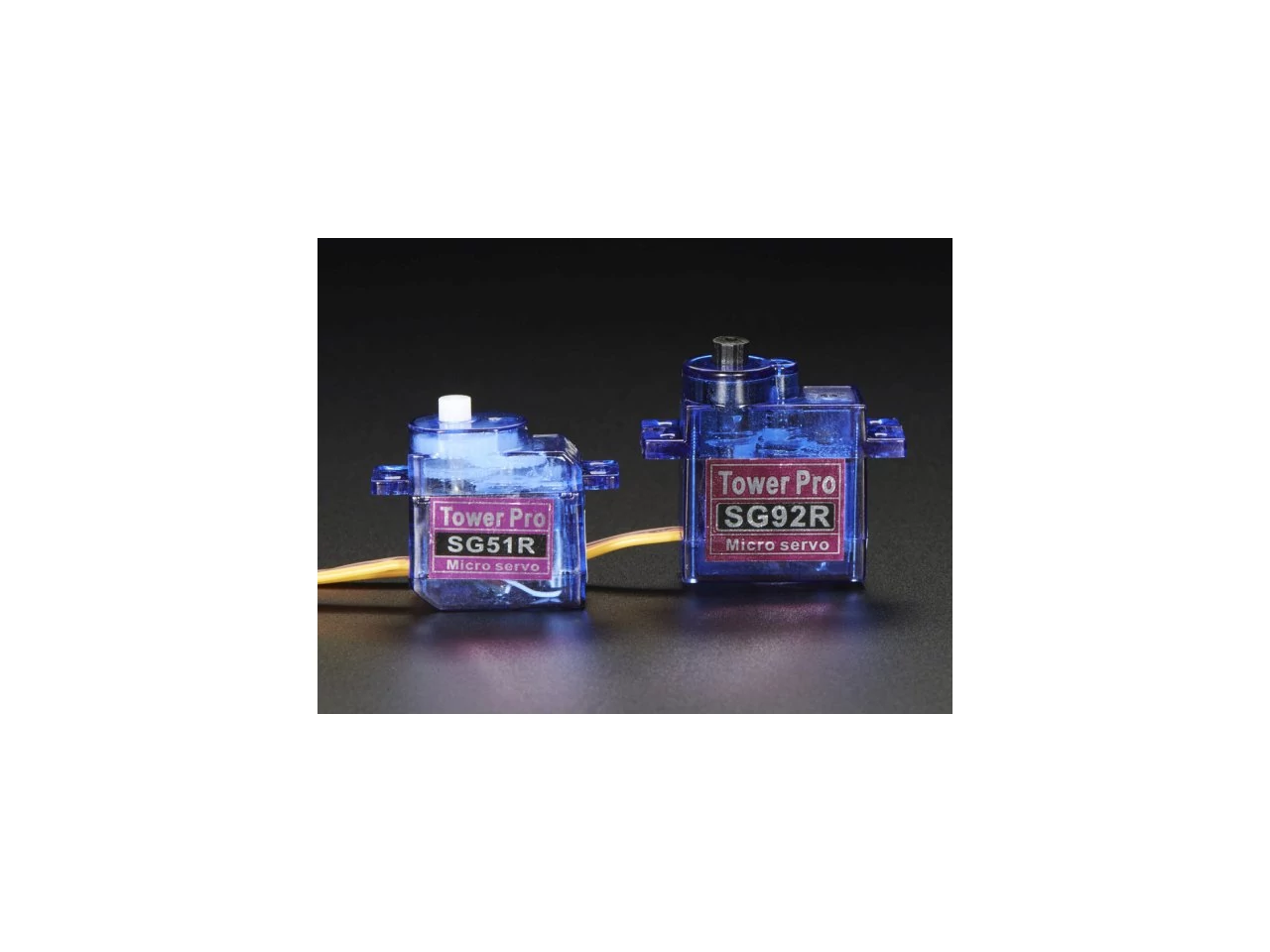

This is just about the cutest, tiniest little micro servo we could find, even smaller than the 9-gram micro servos we love so much. It can rotate approximately 180 degrees (90 in each direction) and works just like the standard kind you're used to but much smaller. You can use any servo code, hardware, or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. Of course, it's not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino or by just wiring up with the Servo library. Comes with a few horns and hardware.
To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.
Note that the default servo pulse widths (usually 1ms to 2ms) may not give you a full 180 degrees of motion. In that case, check if you can set your servo controller to custom pulse lengths and try 0.75ms to 2.25ms. You can try shorter/longer pulses but be aware that if you go too far you could break your servo!Technikai adatok:
- Dimension: 25mm x 22mm x 12mm / 1.0" x 0.9" x 0.5"
- Operating Voltage: 4.8V
- Stall Torque (4.8v): 0.6kg/cm
- Operation Speed (4.8v): 0.1sec/60°
- Operating Voltage: 4.8v
- Wire: 150mm / 5.9"
- Weight: 5g

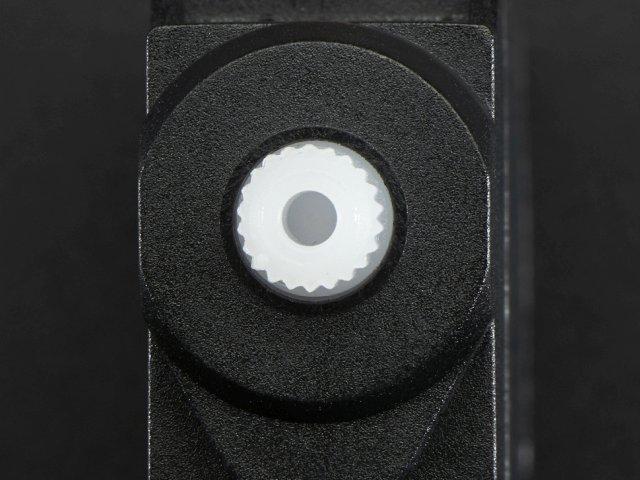

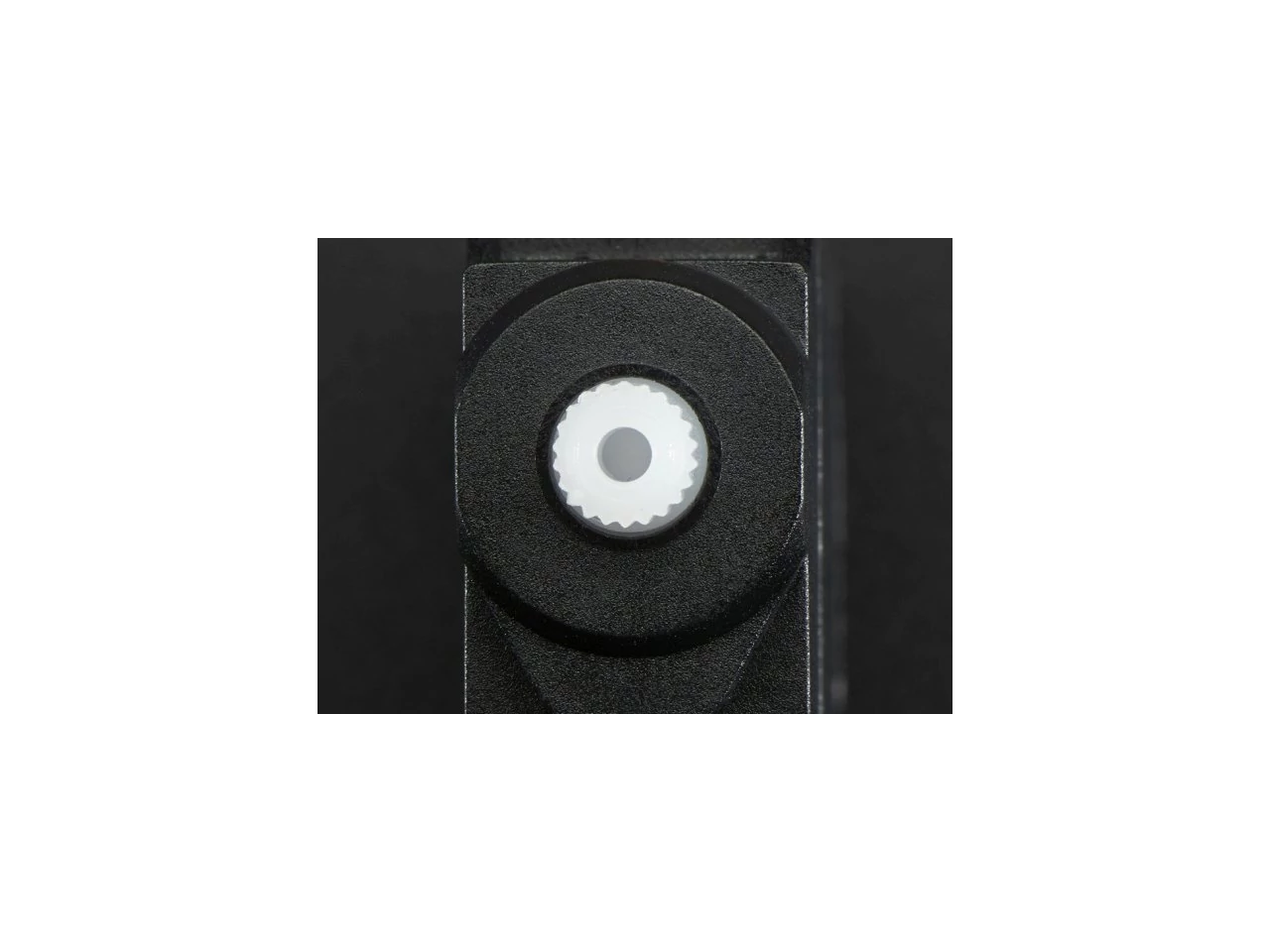

- Spline Count: 22
