A1177 Aluminum Flex Shaft Coupler - 5mm to 10mm
| Garancia |  |
| Átlagos értékelés: | Nem értékelt |
| Gyártó | Adafruit |
| Raktár 1: | 9 db
Raktár 1: Expressz szállítás vagy átvétel
|
| Raktár 2: | 0 db
Raktár 1: Expressz szállítás vagy átvétel
|
| Cikkszám | 55235 |
|
|
|
Minősített viszonteladó
Leírás
A1177 Aluminum Flex Shaft Coupler - 5mm to 10mm

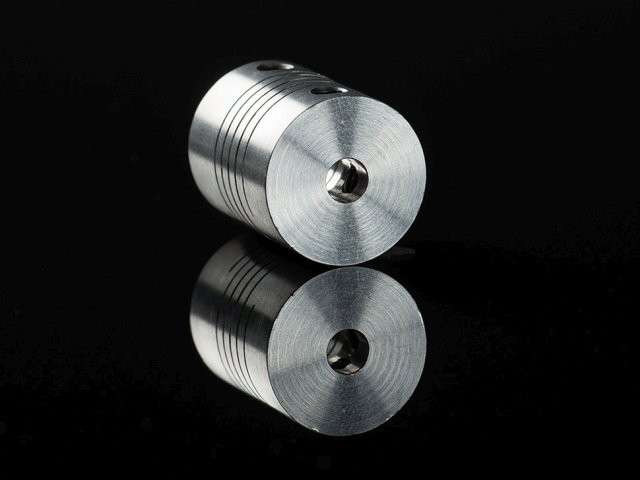

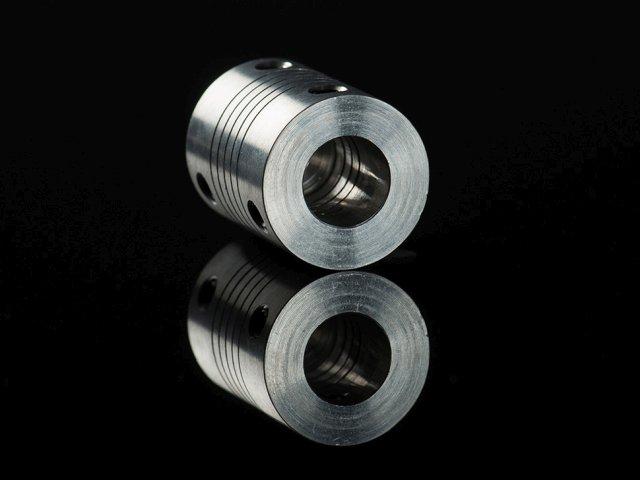

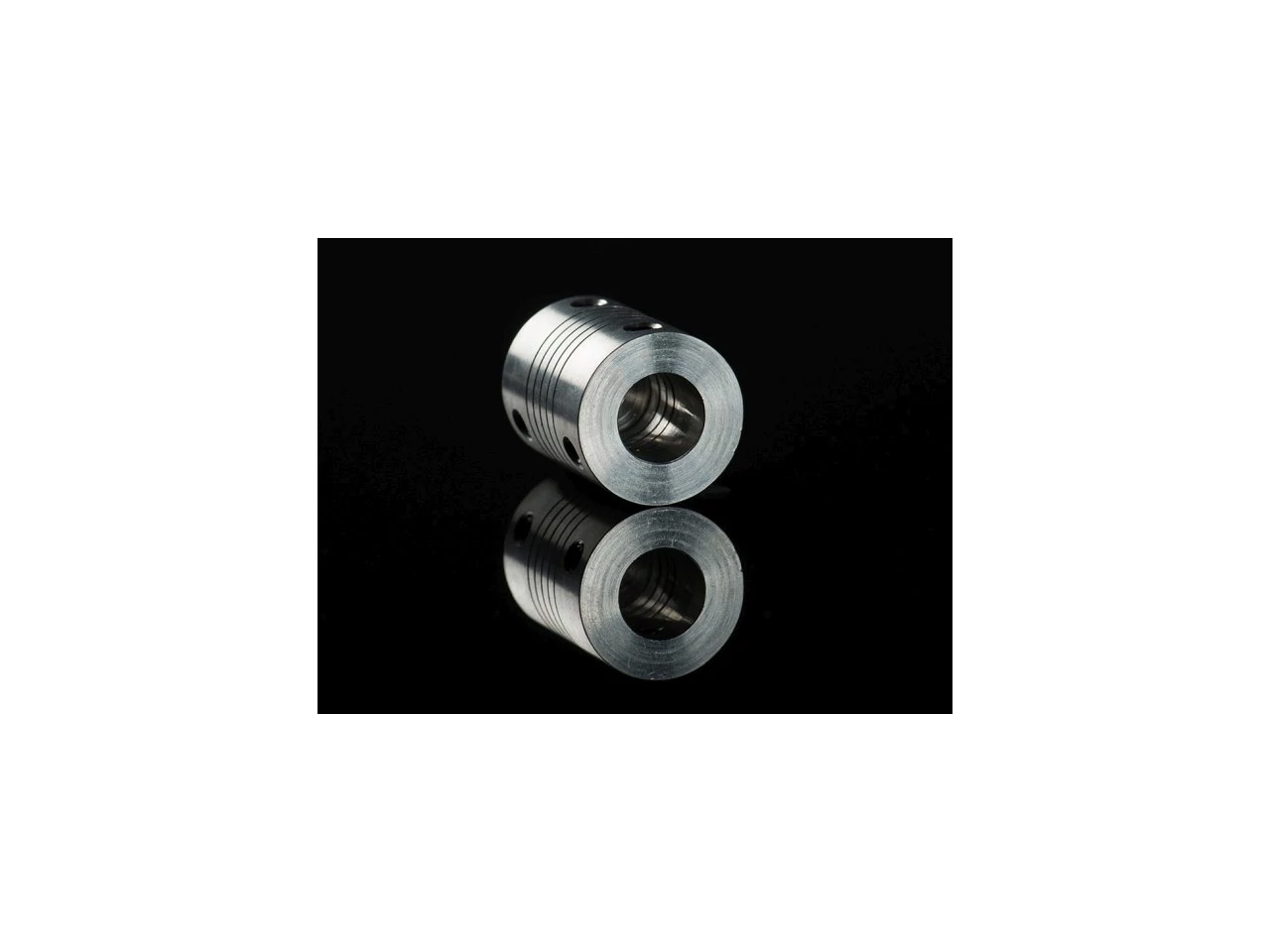

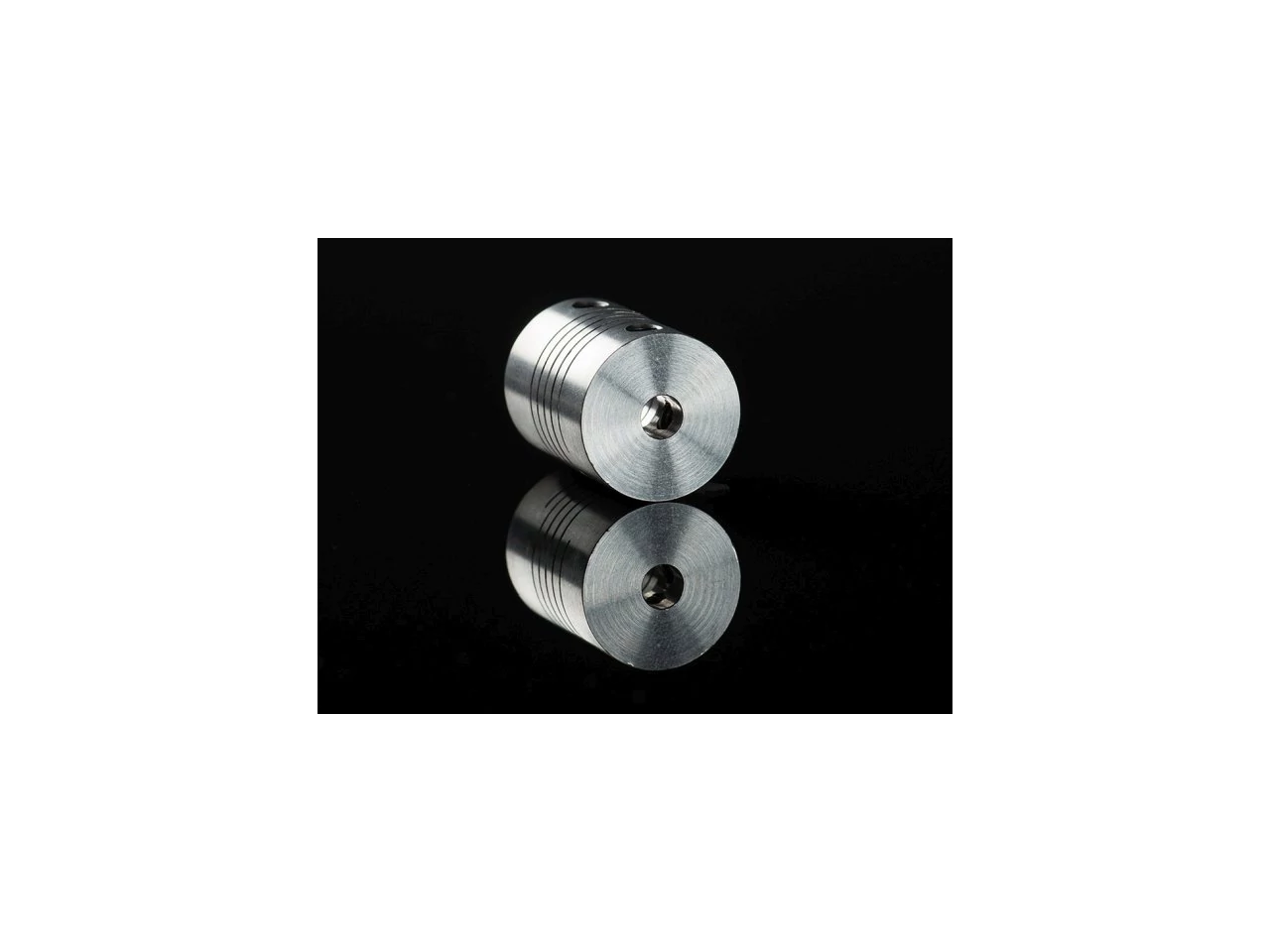

Connect this to that with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. The way they're cut, they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means that you won't get increased backlash - so they're suitable for precision CNC work.

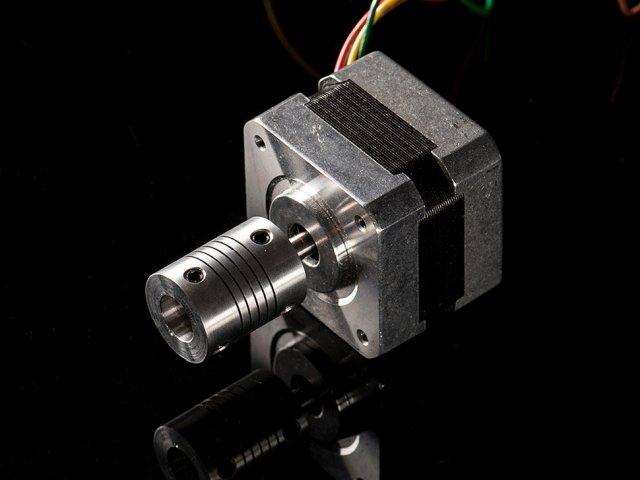

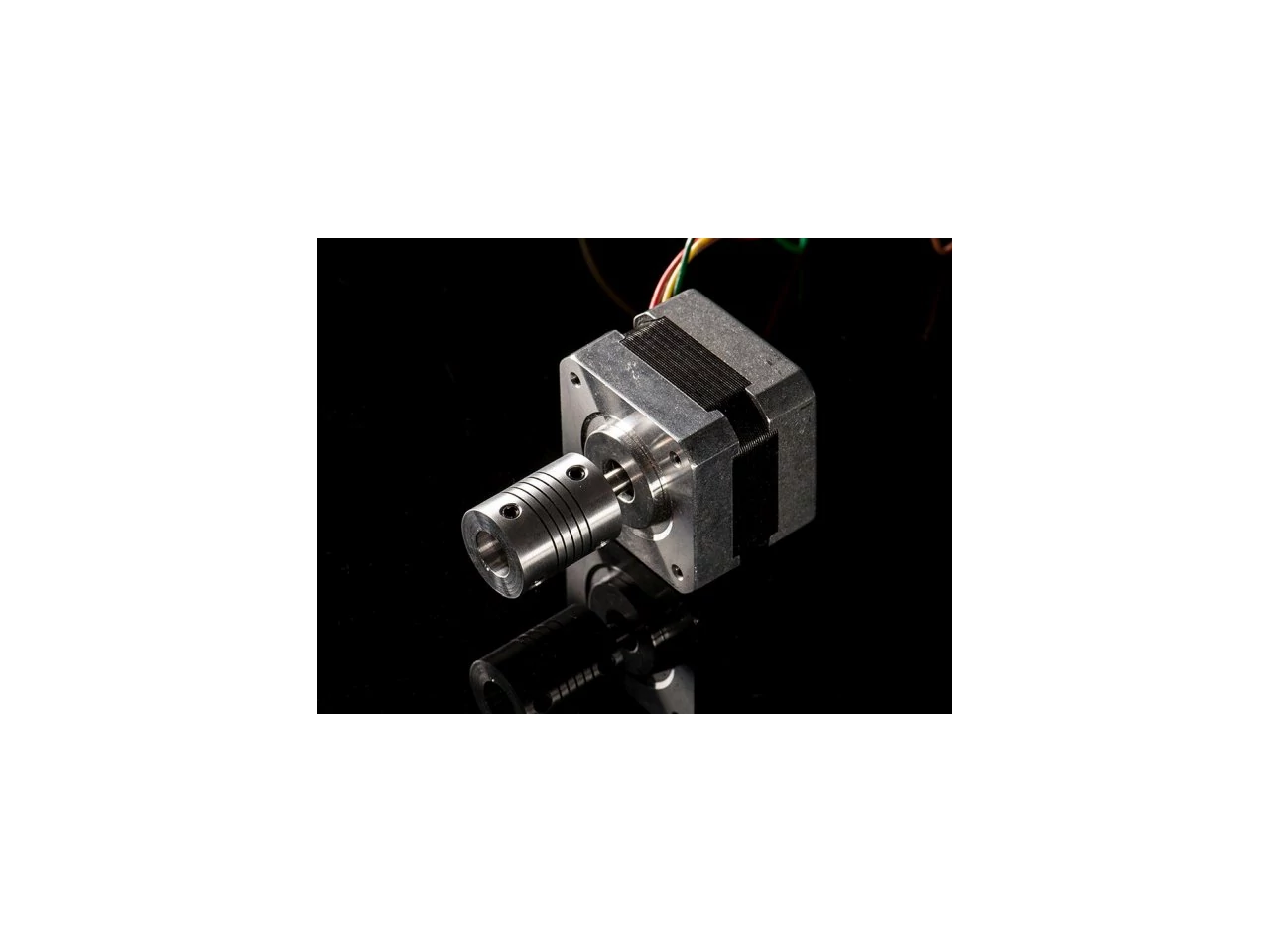

This coupler will connect a 5mm diameter shaft to a 10mm diameter shaft. A perfect add on for our stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.
Technikai adatok:
- Outer Diameter: 20mm / 0.8"
- Inner Diameter (wide side): 10mm / 0.4"
- Inner Diameter (small side): 5mm / 0.2"
- 15 grams
