A5037 JST-SH 4-pin Cable with Micro SMT Test Hooks - STEMMA
| Garancia |  |
| Átlagos értékelés: | Nem értékelt |
| Gyártó | Adafruit |
| Raktár 1: | 4 db
Raktár 1: Expressz szállítás vagy átvétel
|
| Raktár 2: | 0 db
Raktár 1: Expressz szállítás vagy átvétel
|
| Cikkszám | 55335 |
|
|
|
Minősített viszonteladó
Leírás

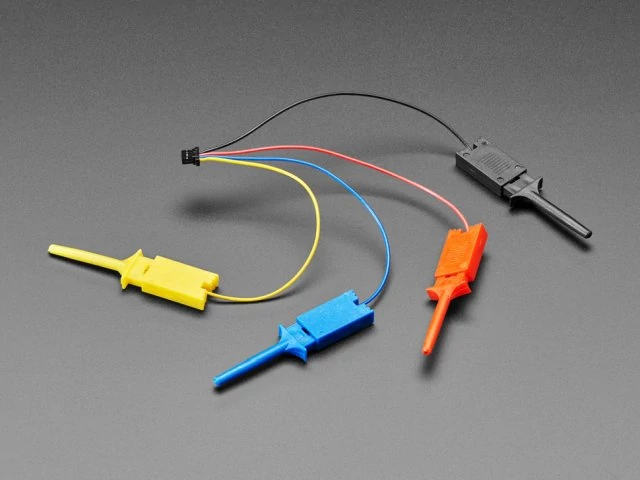

A5037 JST-SH 4-pin Cable with Micro SMT Test Hooks - STEMMA

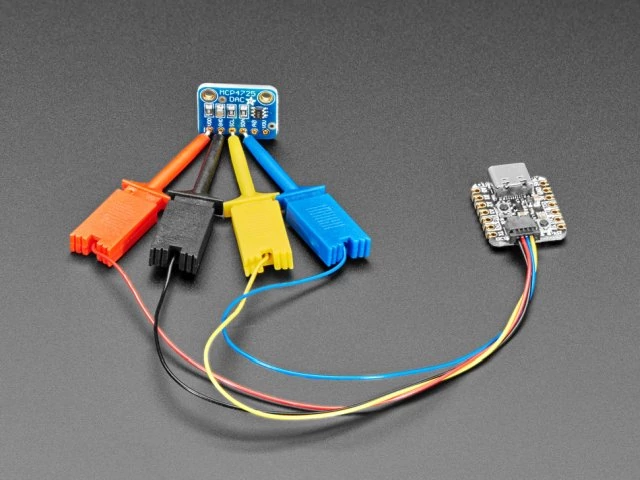

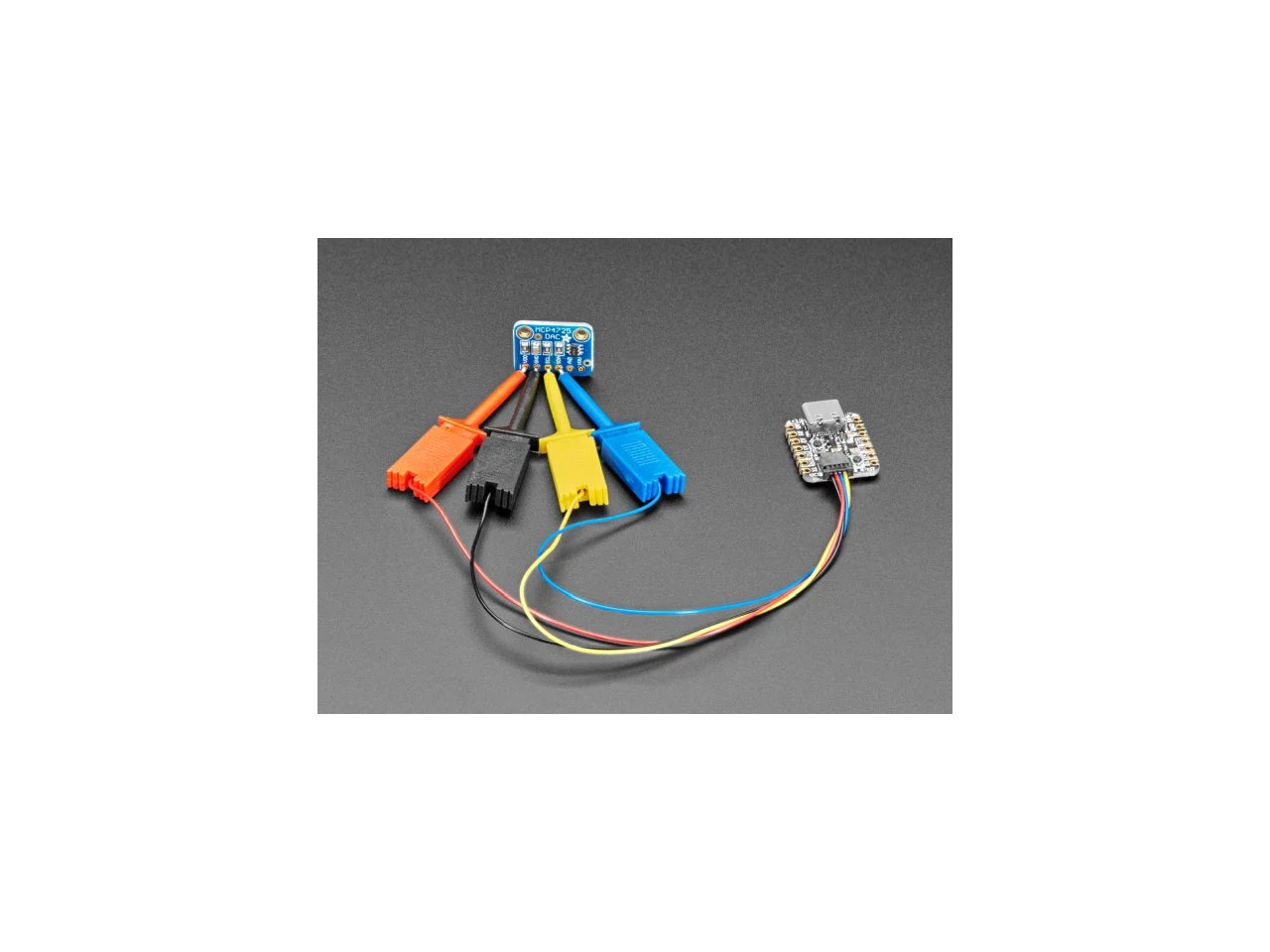

This cable will make it super easy to use our plug-and-play STEMMA QT boards and controllers with chips, breakouts, and other devices that are I2C compatible but don't come with a STEMMA QT socket already on 'em.

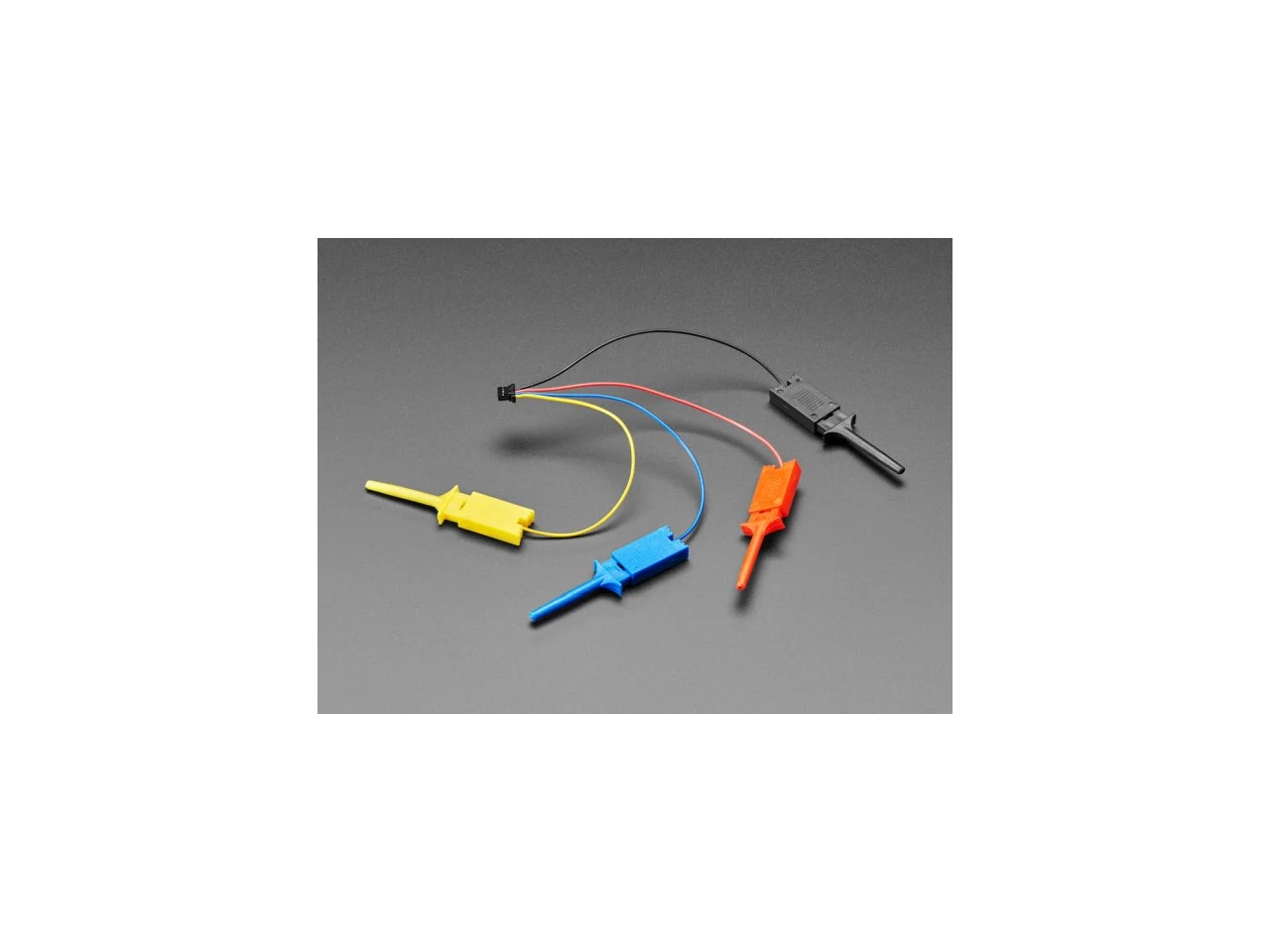

On one end you get a Qwiic / STEMMA QT connector (technically known as a JST SH 4-pin plug) into 4 individual wires with 'micro hook' ends. The hooks are much finer pitch than our alligator clip QT cable, and can easily grab on to through-holes, wires, DIP, or SOIC/SOP chips. These are not small enough for TSSOP's or TQFPs. If you need to add test points, we stock through-hole ones that fit nicely into 0.1" holes
Please note - These hooks are not the high-quality ones you see that come with expensive logic analyzers - but they do get the job done!
This cable has a JST SH 4-pin on one side and micro hook clips on the other.
- Black for GND
- Red for V+ - For Qwiic boards, 3.3V. For STEMMA QT, 3 to 5V.
- Blue for SDA
- Yellow for SCL
Check out all our STEMMA QT offerings here
For more information about JST SH connectors, visit the JST website
