A4209 STEMMA QT / Qwiic JST SH 4-pin papa Jumper kábel 150mm

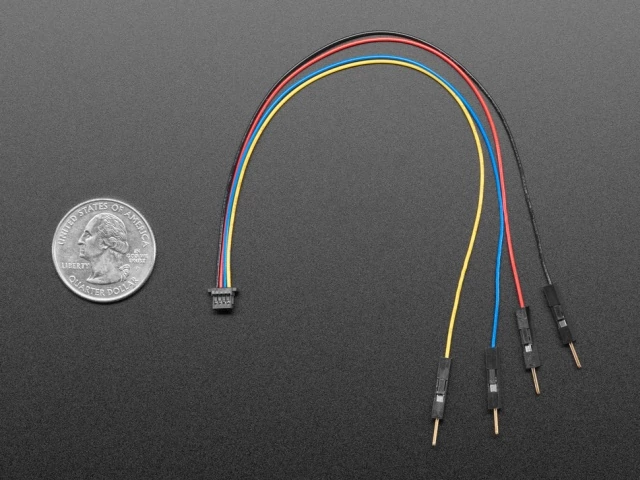

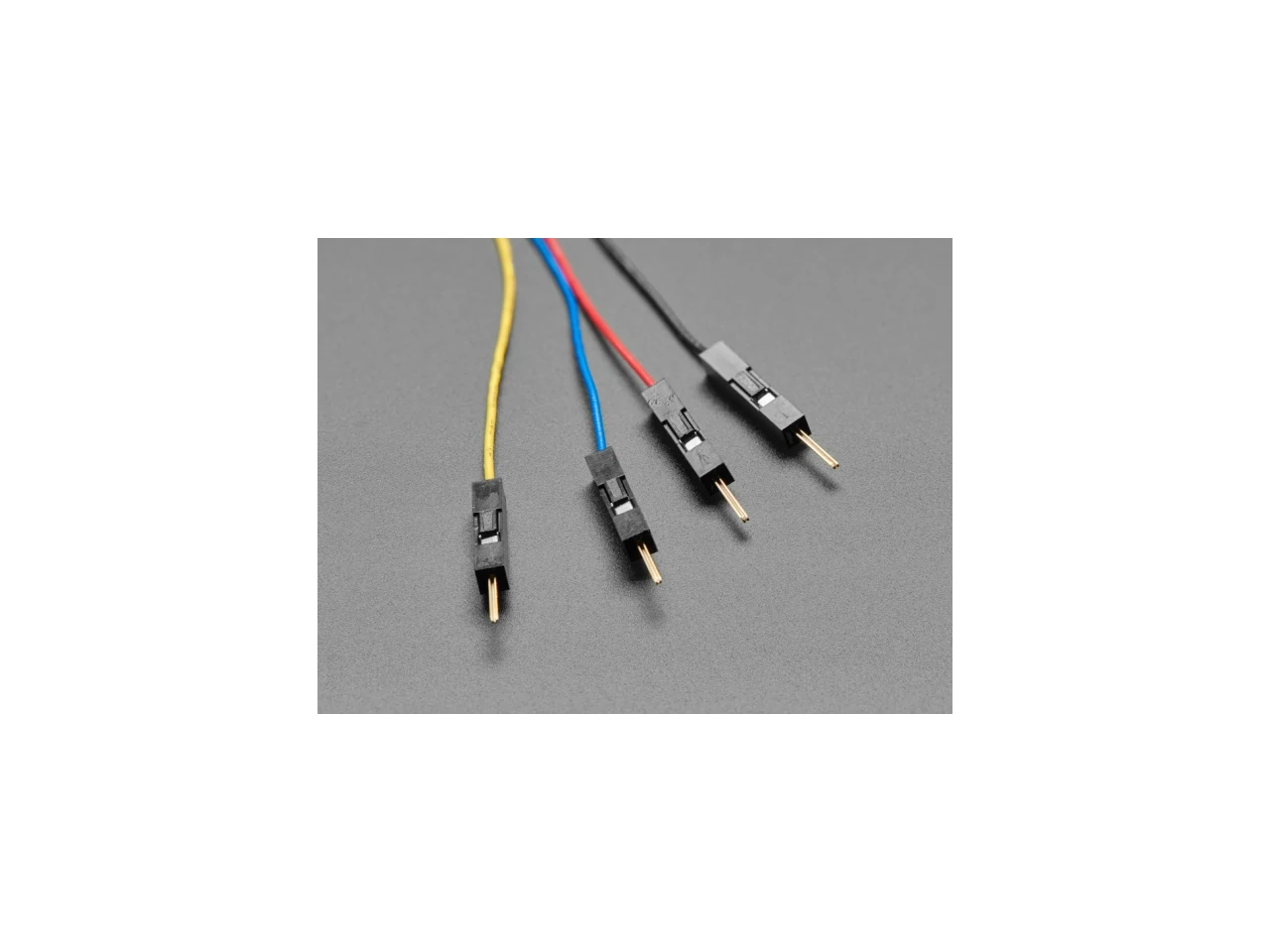

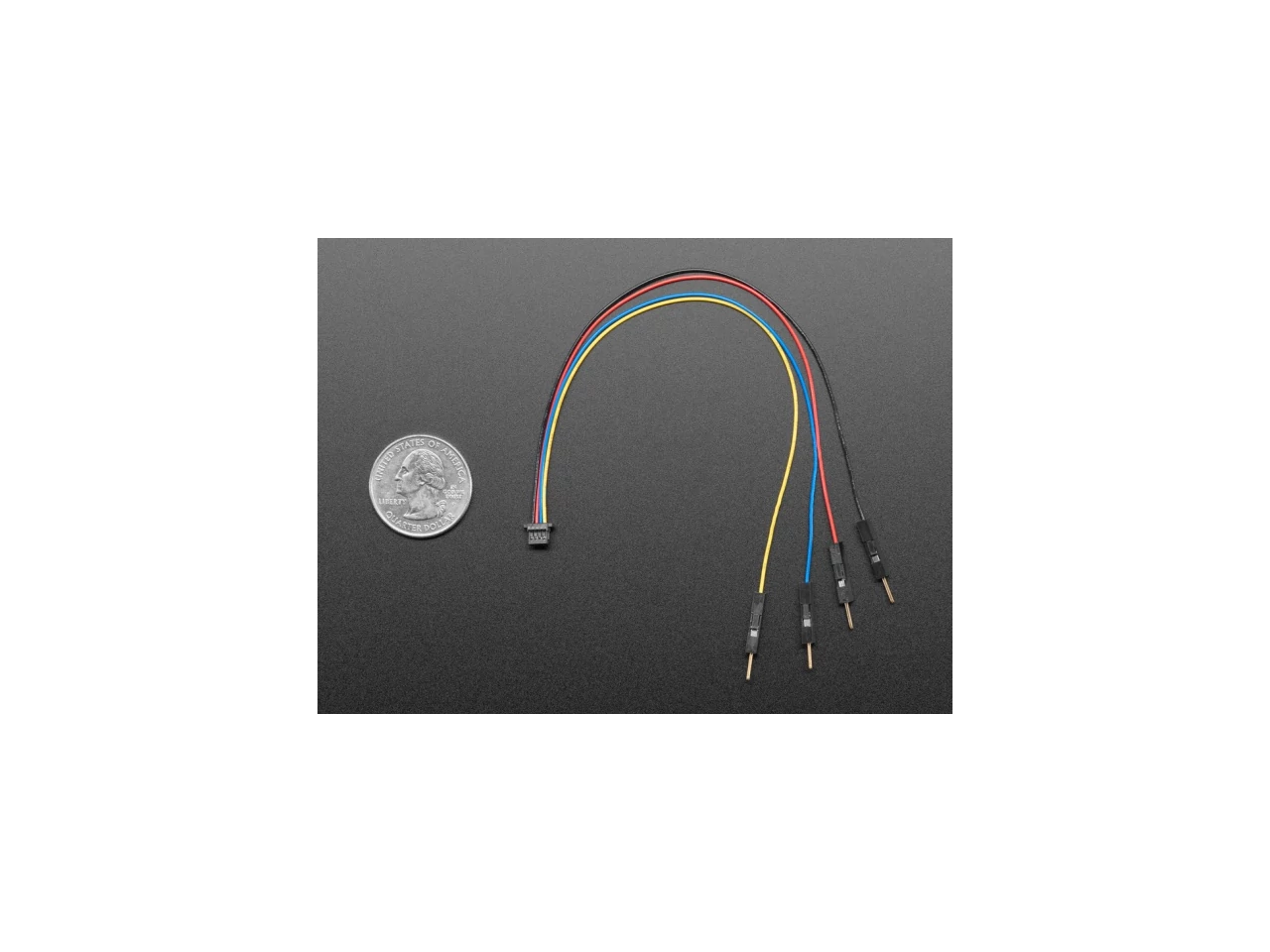

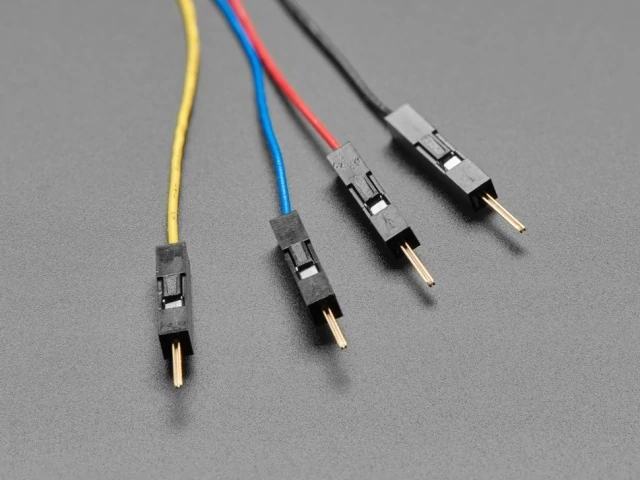

This 4-wire cable is a little over 150mm / 6" long and fitted with JST-SH female 4-pin connectors on one end and premium Dupont male headers on the other. Compared with the chunkier JST-PH these are 1mm pitch instead of 2mm, but still have a nice latching feel, while being easy to insert and remove.
This cable can be used with Qwiic boards, to easily connect sensors and drivers to board with 0.1" socket headers or to solder-less breadboards. Or you can always solder to the header ends directly as well. When used with Qwiic the colors are:
- Red - 3.3VDC Power
- Black - Ground
- Blue - I2C SDA Data
- Yellow - I2C SCL Clock
- As of Dec 15, 2020 we are now shipping with gold-plated header contacts
