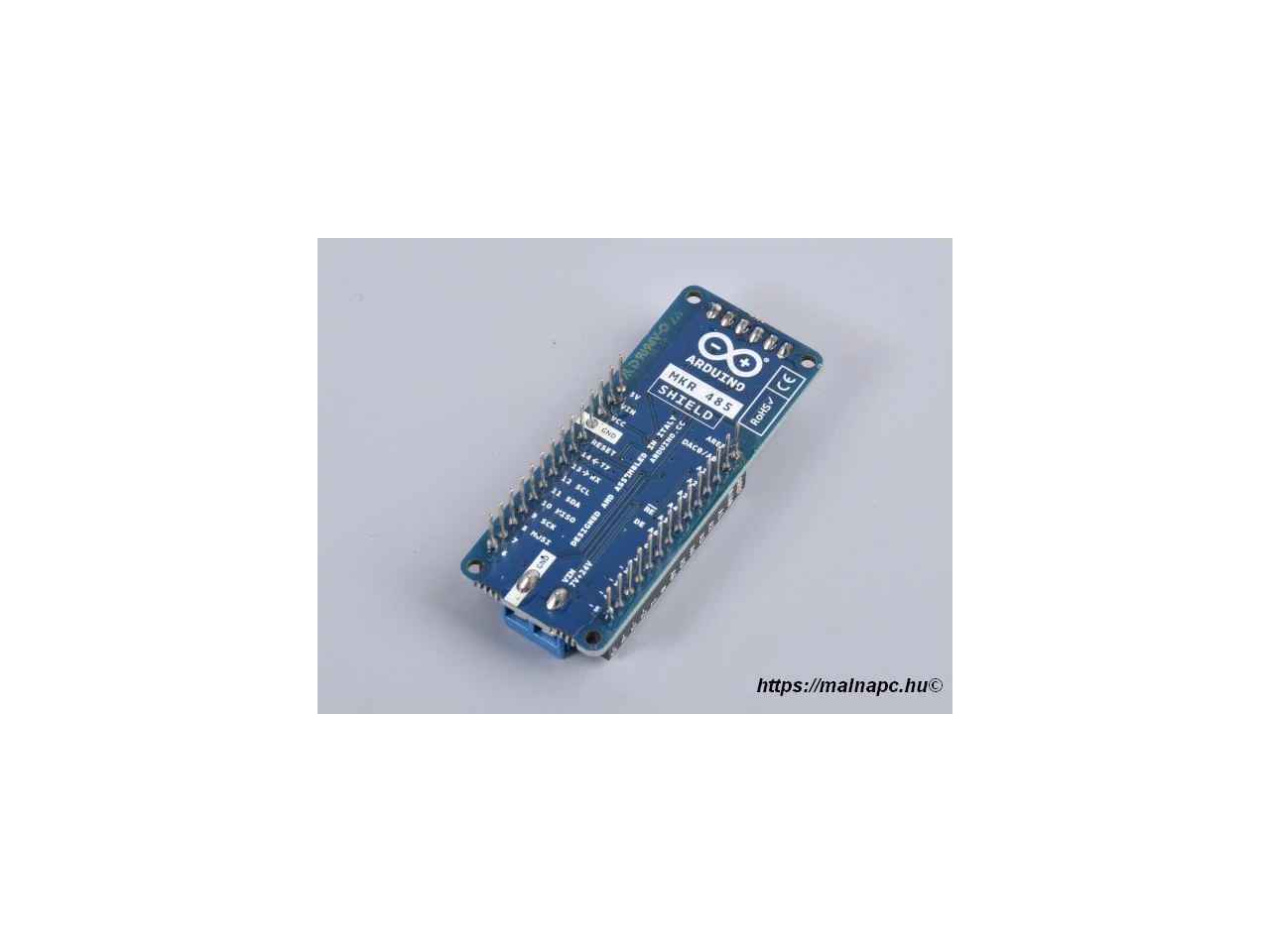

Arduino MKR 485 Shield - ASX00004

Arduino MKR 485 Shield - ASX00004

Want to add serial communications to your device using the RS-485 protocol? The Arduino MKR 485 shield will provide the industrial connectivity you need.

Thanks to this shield, you can now connect your MKR board to any of the industrial systems that using the RS 485 protocol.

The MKR 485 shield is the ultimate expansion that allows MKR boards to connect to almost any legacy industrial system, such as industrial PLCs, controllers, drives and HMIs. Old industrial systems (e.g., machinery, heating systems, and conveyors) can to turned into IoT devices through a serial connection using the MKR 485.

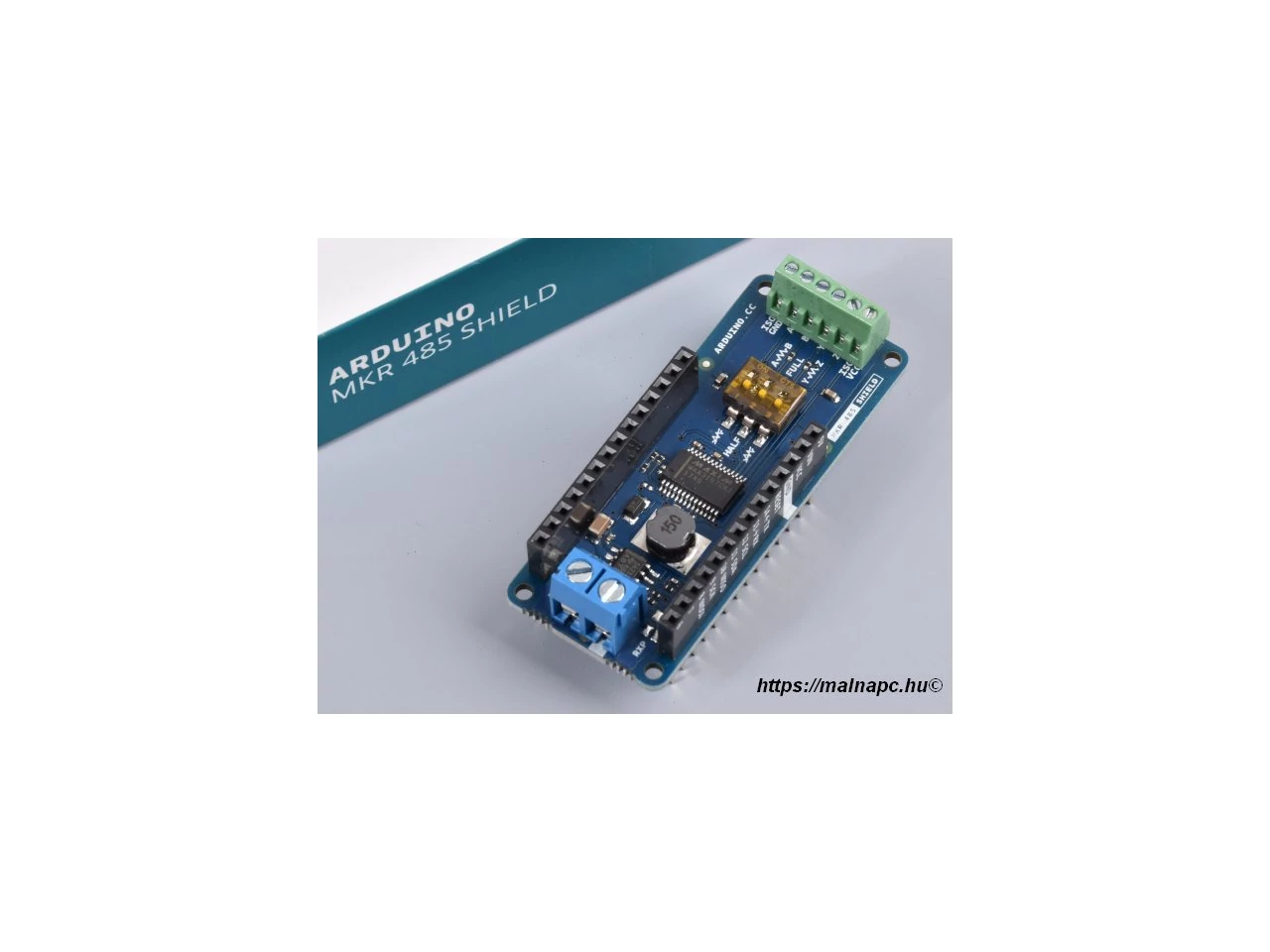

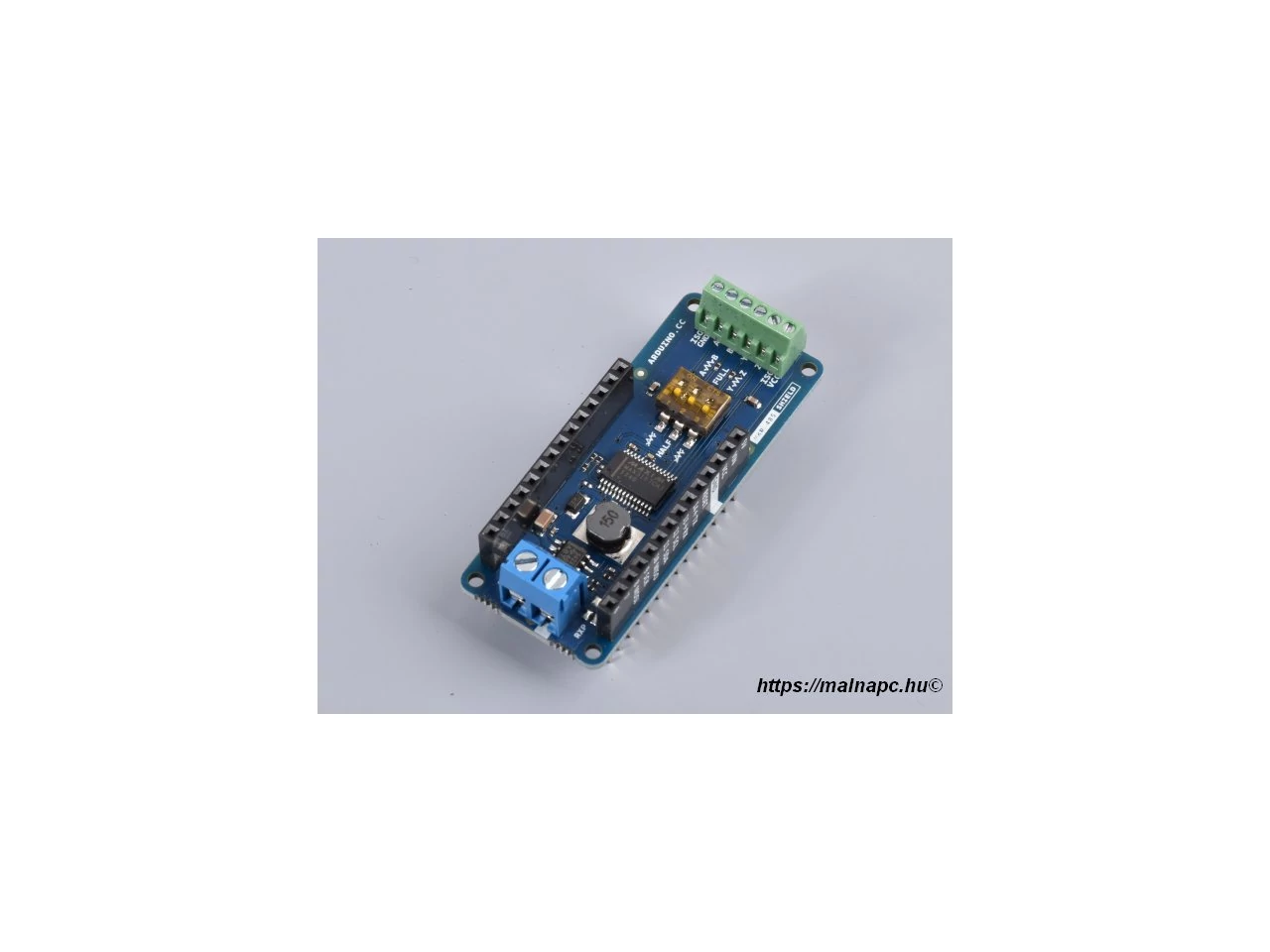

The shield is based on the MAXIM MAX3157 ( Datasheet ) and provides Half / Full Duplex .

Connectivity: RS-485 Bus

Interface: Full/Half Duplex Isolated Transceiver
at 5V with 16V Vin Max Buck On-Board Converter

Circuit Operating Voltage: 3.3 V

Compatibilty: MKR size
