A2601 Adafruit RGB Matrix Shield for Arduino

A2601 Adafruit RGB Matrix Shield for Arduino

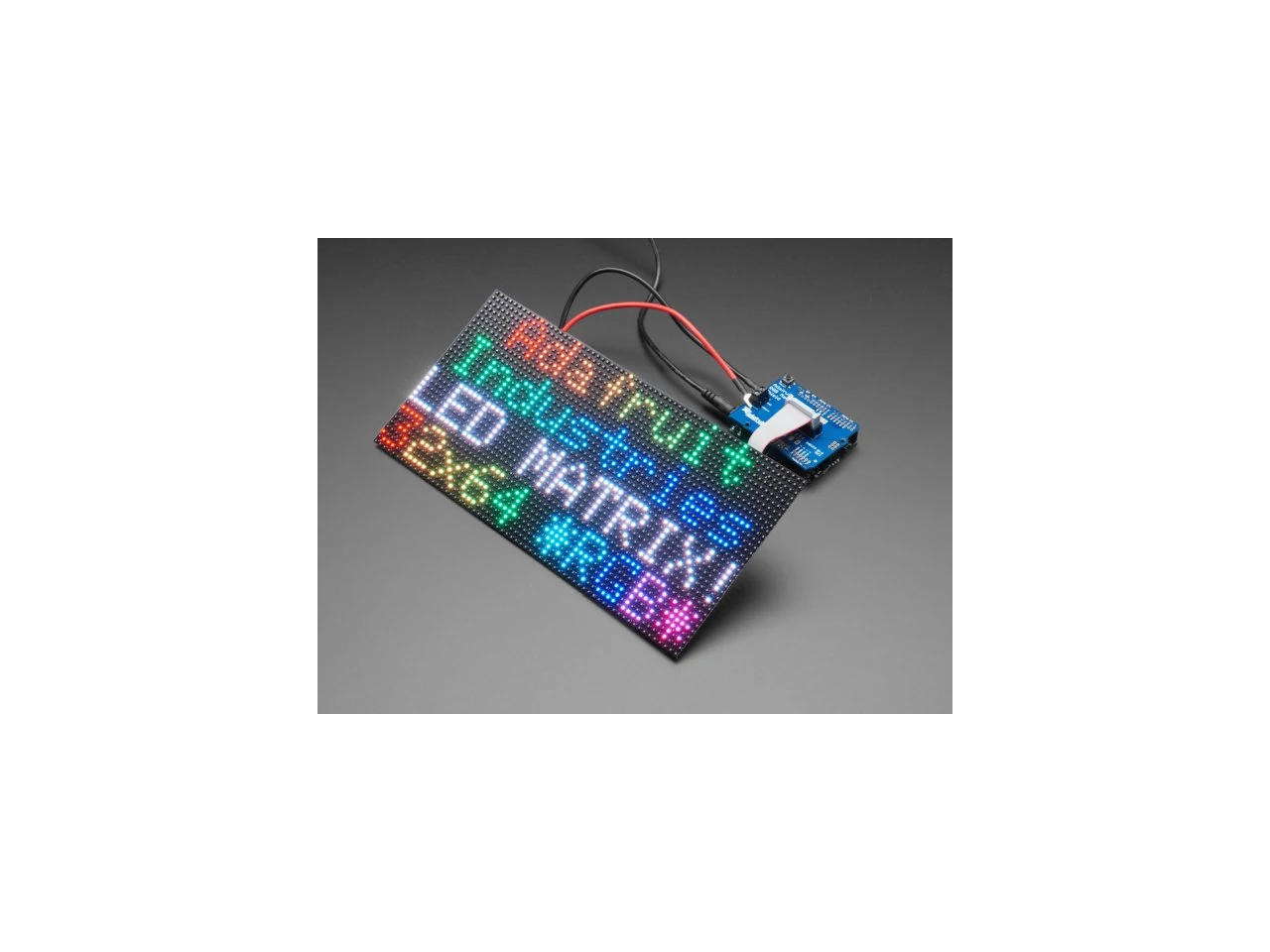

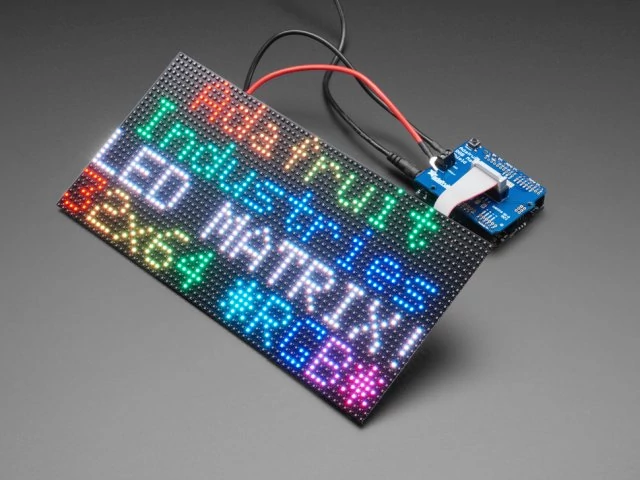

Our RGB matrices are dazzling, with their hundreds or even thousands of individual RGB LEDs. Compared to NeoPixels, they've got great density, power usage and the price-per-LED can't be beat. But...(isn't there always a but?) You need to use our special library to control them, and they require a bunch of wires to be plugged in. Tougher than a single-wire connection for sure.

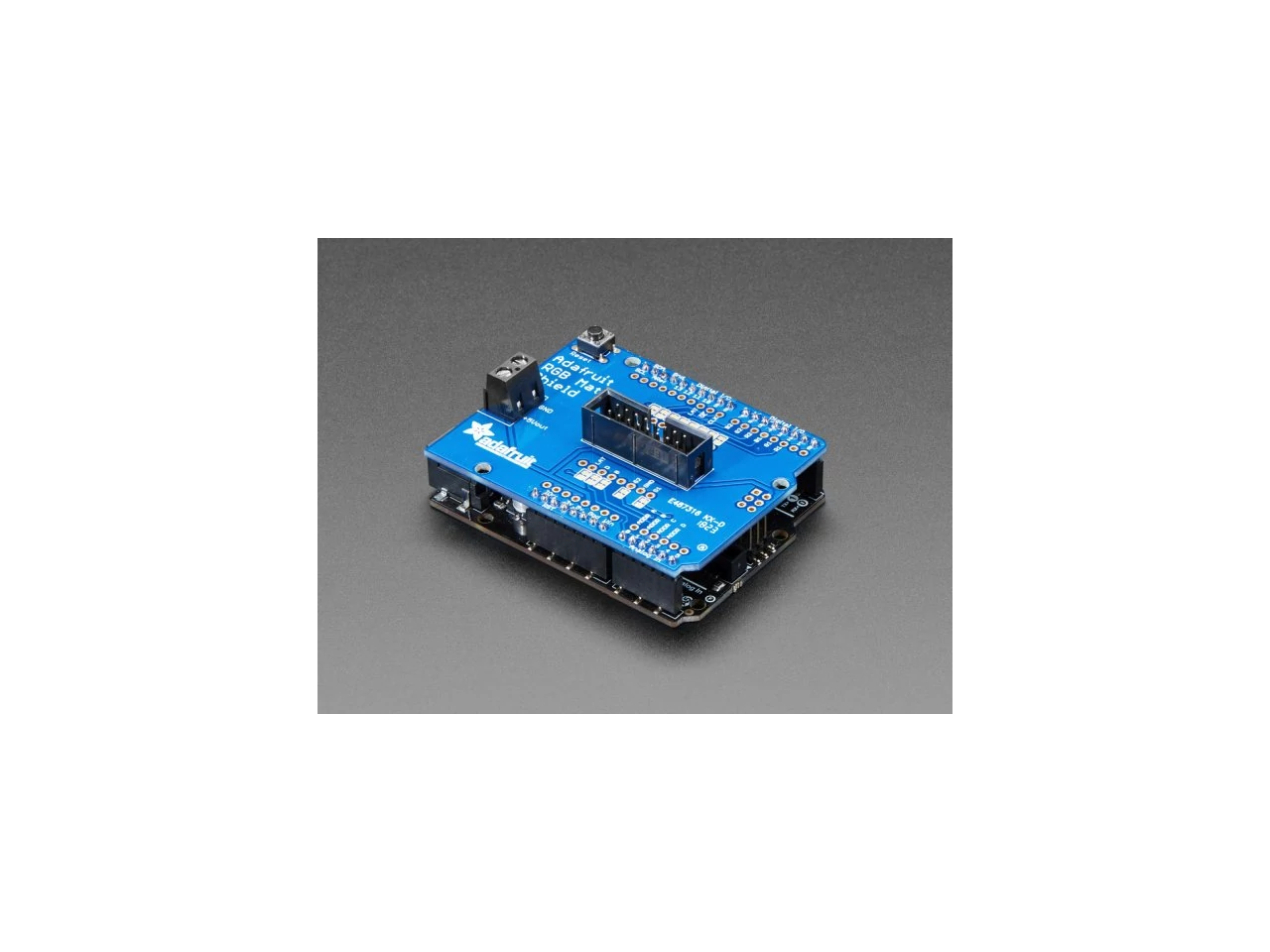

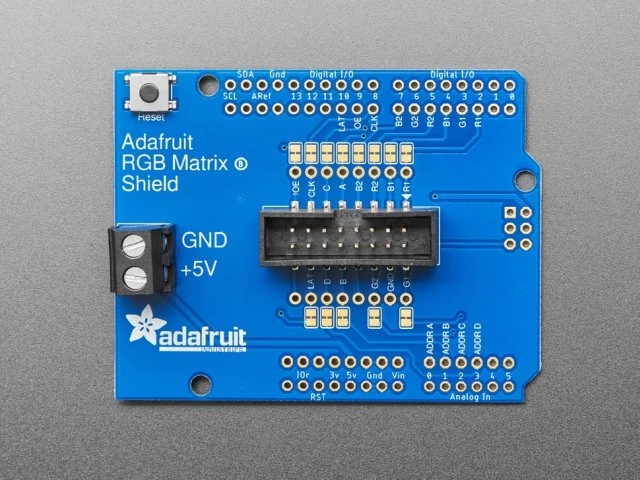

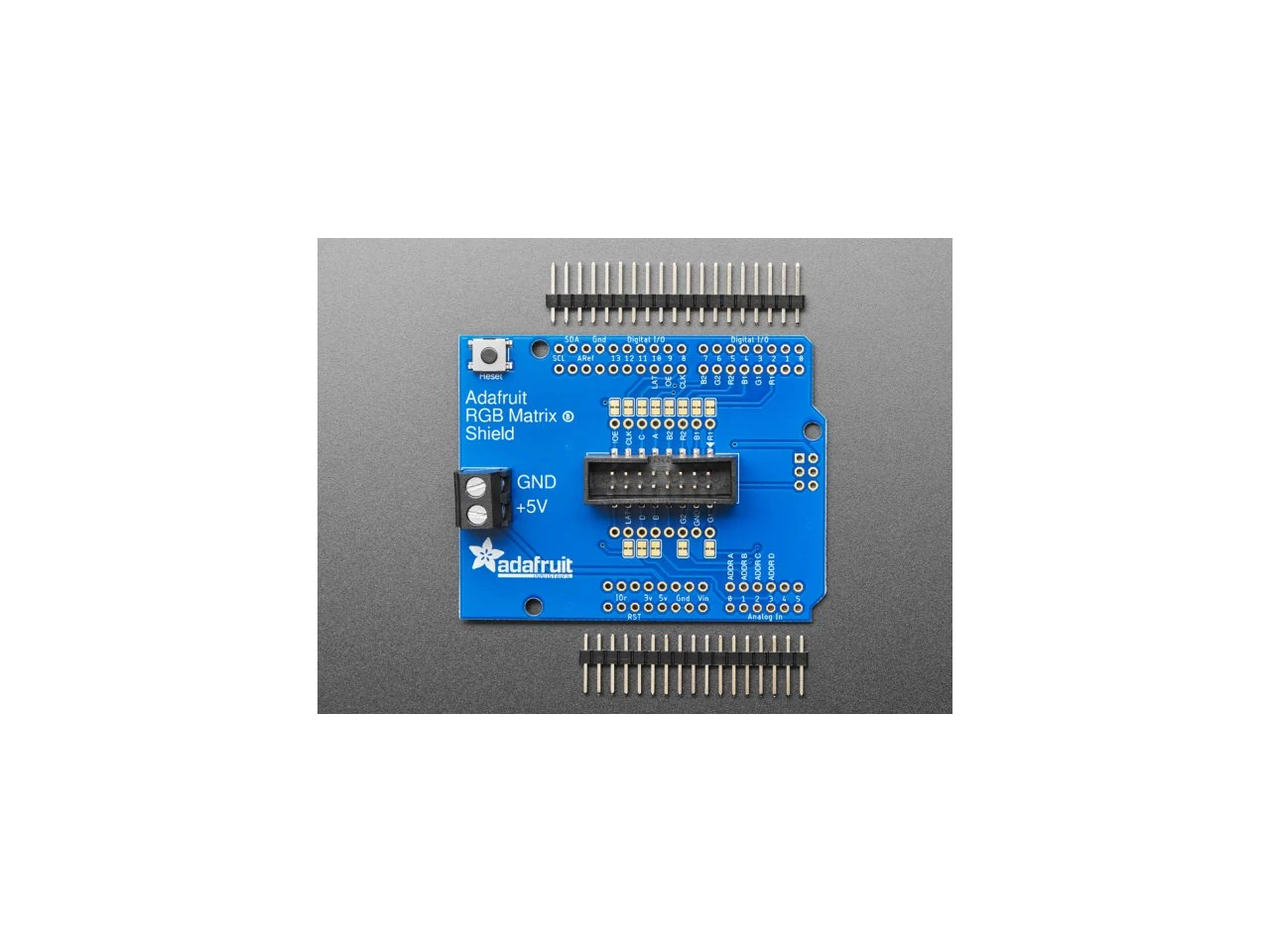

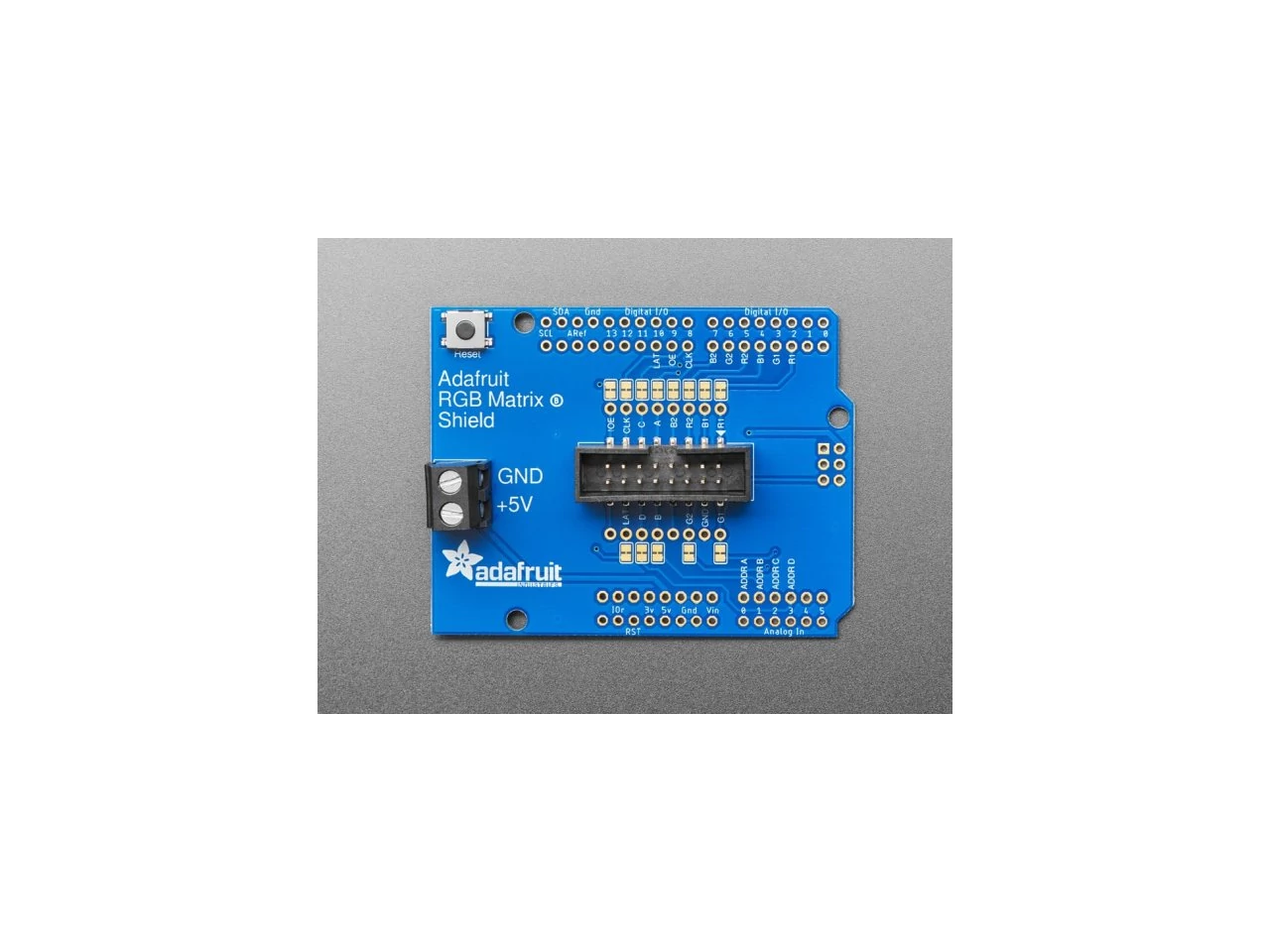

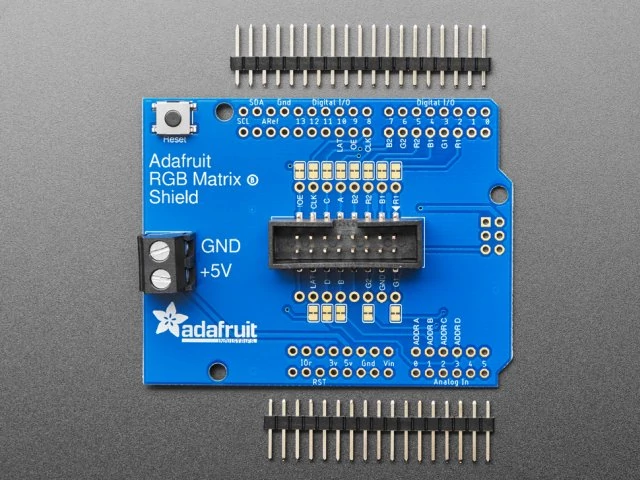

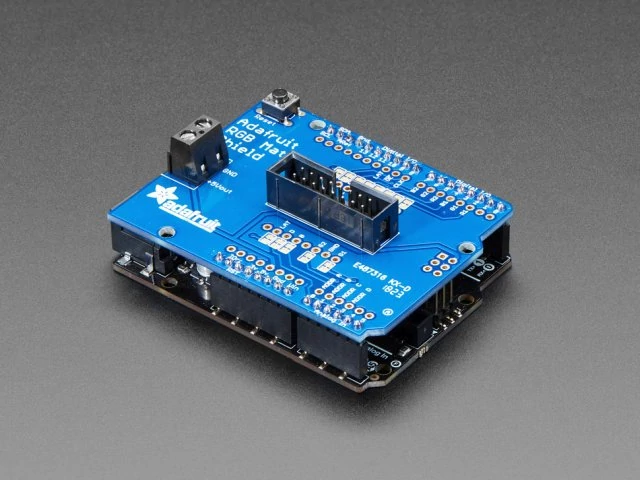

If you've got an Arduino-compatible board, with an ATmega328p chip (like our Metro 328) or SAMD21 (like the Metro M0), ESP32-S2, or even SAMD51 (like our Metro M4) this shield will make usage a snap! A little light soldering to attach the headers, and you're ready to rock. Plug it onto your microcontroller board, and you'll be able to attach any RGB matrix with ease. This shield just takes care of the wiring for you!

For 800mA or less power usage on the matrix, you can even 'borrow' the 5V power from the Arduino's regulator. This isn't good for projects where you have a lot of LEDs on at once, but for scrolling text and light LED usage, it will make wiring even easier because you don't need a separate power adapter. Of course, if you need 1 Amp or more, just use the 2x8 connector for data and use a separate 5V 2A or 5V 4A wall adapter directly to the panel.

Note that this shield is just a wiring adapter, if you have a Metro 328 you can only use 16x32 or possibly 32x32 matrices before you run out of RAM. For big panels, use a Metro ESP32-S2, M0 or M4 - those will work best thanks to their enormous RAM.

Check out our guide for all the details!
